Electric forklift truck XE4535A is a purpose-built industrial vehicle engineered for handling and transporting heavy loads with precision and reliability. Designed to operate in warehouses, manufacturing plants, distribution centers, and other demanding environments, the XE4535A optimizes material-handling workflows while minimizing environmental impact. At its core, the XE4535A features a robust electric drive system powered by a 24 V/420 Ah traction battery, delivering consistent torque and smooth acceleration without diesel emissions or excessive noise. With a rated lifting capacity of 3500 kg and a maximum lifting height of 4500 mm on its triplex mast, this model accommodates a wide range of pallet sizes and load configurations. The free-lift function allows initial mast extension of up to 150 mm before full mast elevation, enabling safe operation in low-ceiling facilities. Integrated within a sealed, climate-controlled cabin equipped with a diesel-grade heater, the XE4535A ensures operator comfort and visibility in cold or poorly ventilated areas. An external European-standard charger (24 V/50 A) replenishes the battery efficiently overnight or during planned breaks, supporting continuous multi-shift operation. This introduction outlines how the XE4535A contributes to productivity, safety, and uptime in enterprise material-handling applications.

Specs of electric forklift truck XE4535A

ROI of electric forklift truck

Investing in the electric forklift truck XE4535A delivers measurable returns by streamlining material-handling processes and reducing operating expenditures. Electric drivetrains boast up to 30 % lower energy costs per hour compared with internal-combustion counterparts, translating into significant savings over the equipment’s service life. Eliminating diesel or LPG fuel logistics reduces onsite refueling overhead and associated safety risks. Furthermore, the XE4535A’s low maintenance schedule—enabled by fewer mechanical components in the electric motor and regenerative braking—minimizes downtime and maintenance labor costs. Enhanced operator comfort in the climate-controlled cabin contributes to higher productivity and reduced absenteeism. The precise load control afforded by electronic hydraulics lowers load-damage incidents and product losses. By enabling faster cycle times through its 370 mm/s lift speed and stable side-shifting functionality, the XE4535A boosts warehouse throughput by an estimated 10–15 %. These efficiency improvements support a payback period as short as 18–24 months for many businesses, with extended service intervals further optimizing total cost of ownership.

Key Features of Electric forklift truck

• Rated load capacity of 3500 kg, optimized for medium- to heavy-duty material handling
• Triplex mast with 4500 mm maximum lift height and 150 mm free-lift for low-ceiling operation
• Integrated hydraulic side-shifter delivering ±120 mm lateral fork adjustment without manual repositioning
• 24 V / 420 Ah traction battery providing consistent torque, with regenerative braking to recover up to 5 % of energy
• External European-standard 24 V / 50 A charger for fast, overnight recharging aligned with shift schedules
• Closed, climate-controlled operator cabin with integrated heater, compliant with ISO 3691-1 ergonomic standards
• Smooth electronic control of acceleration and braking for precise load positioning in narrow aisles
• Dual LED work lights on mast and overhead guard compliant with ISO 6055 for enhanced visibility
• Robust steel chassis with reinforced high-stress zones and corrosion-resistant finishes for extended service life
• Digital onboard diagnostics for real-time monitoring of battery state of charge, motor temperature, and hydraulic pressure
• Minimum 2270 mm turning radius and 11 % gradeability to ensure versatile operation on ramps and docks
• Compatibility with ISO 2328-compliant forks and attachments (clamps, rotators, extensions) for diverse load types

How to use electric forklift truck XE4535A

1. Pre-operation Inspection: Conduct a daily walk-around to verify tire pressure, hydraulic oil level, and battery charge status. Ensure mast rollers and chains are lubricated, and confirm side-shifter functionality.
2. Entry and Startup: Use the integrated handrail and non-slip steps to access the cabin. Fasten the seat-belt and engage the parking brake. Insert the key and turn to ‘On.’ The dashboard will perform self-diagnostics.
3. Selecting Drive Mode: Choose between ECO (energy-saving) and STANDARD modes via the control panel to match load requirements.
4. Lifting and Shifting: Operate the left joystick to raise or lower the mast. Engage the side-shifter lever for lateral fork movement. Smoothly accelerate forward to position the load.
5. Transporting Loads: Maintain a maximum travel speed of 12 km/h, braking gradually to avoid sudden stops. Use the horn at aisle intersections.
6. Parking and Shutdown: Lower forks fully, tilt mast back, set the parking brake, switch off the ignition, and remove the key.
7. Charging Procedure: Park in a well-ventilated charging area. Connect the charger to the battery inlet and monitor the charge status until completion. These steps ensure safe, efficient operation and prolong equipment life.

Where to use electric forklift truck

The XE4535A is ideally suited for high-volume warehouses, cold-storage facilities, manufacturing lines, and distribution centers requiring reliable, emission-free material handling. Companies in the food and beverage, automotive parts, consumer goods, and pharmaceutical sectors benefit from its zero-emission operation in enclosed environments. The triplex mast and free-lift capabilities facilitate narrow-aisle racking systems, while the heated cabin supports seasonal operations in refrigerated warehouses. Enterprises transitioning to Industry 4.0 environments will appreciate the electric drive’s compatibility with fleet-management software and telematics platforms. Organizations with sustainability targets leverage the XE4535A to reduce carbon footprints and comply with indoor air-quality regulations. Maintenance-sensitive operations, such as electronics assembly or clean-room processes, profit from the low-noise, low-vibration performance of the electric drivetrain. The XE4535A also excels in outdoor applications on paved surfaces, such as loading docks, provided weather protection or canopy options are specified.

Design and Compatibility of electric forklift truck

The XE4535A’s compact footprint, 3590 mm length and 1238 mm width, enables maneuvering in confined spaces without sacrificing stability. The triplex mast design ensures full visibility at all lift heights, with side rollers and main rollers engineered for a lifespan exceeding 10000 operational hours when properly maintained. Fork carriage width and hook configurations conform to ISO 2328 standards, ensuring compatibility with standard 1200 × 1000 mm pallets, Euro-pallets, and specialized skids. The integrated side-shifter accommodates lateral load adjustments of up to 120 mm in either direction, eliminating the need for manual repositioning. Fork thickness (50 mm) and width (125 mm) are optimized for strength while minimizing pallet entry force. Mounting brackets support a wide range of attachments, including carton clamps, paper roll clamps, and cradle attachments, broadening the XE4535A’s application scope. All hydraulic and electrical connections use industry-standard fittings, facilitating retrofit of existing warehouse accessories.

Performance and Capabilities electric forklift truck

Equipped with a 48 V traction motor delivering 11 kW of continuous travel power and 15 kW of hydraulic lift power, the XE4535A maintains consistent speeds of 12 km/h under both loaded and unloaded conditions. Its dual-cylinder hydraulic lift system achieves 370 mm/s ascent speed when unloaded and 220 mm/s under full load, optimizing cycle times. The forklift negotiates inclines up to an 11 % grade, ensuring reliable operation on ramps and loading docks. Maximum safe tilt angles of 6° forward and 10° backward stabilize high-center-of-gravity loads. Regenerative braking recovers up to 5 % of energy during deceleration, extending run time by up to 20 minutes per shift. The closed-loop steering system provides a minimum turning radius of 2 270 mm, enabling precise movements in narrow aisles. Digital diagnostics monitor motor temperature, hydraulic pressure, and battery state of charge, alerting operators to potential issues before they impact performance.

Safety and Durability of electric forklift truck

Safety features include an overhead guard compliant with ISO 6055, hydraulic velocity fuses on lift cylinders to prevent uncontrolled descent in case of hose failure, and a secondary mechanical parking brake. The operator cabin meets ISO 3691-1 standards for ergonomic design, with adjustable seat, armrest, and steering column to reduce fatigue. LED work lights on the mast provide clear illumination during night or low-light shifts. Durable steel construction with reinforced reinforcements in high-stress areas resists deformation under impact. Corrosion-resistant paint and sealed electrical connectors protect against moisture and dust ingress, ensuring reliability in harsh environments. The battery compartment includes a spill containment tray and an interlock that prevents operation if the battery is not fully secured. All critical welds are ultrasonic-tested, and the chassis undergoes a 1 200-hour salt-spray test to validate long-term durability.

Adjustments and Maintenance of electric forklift truck

Routine maintenance intervals include daily visual inspections of tires, mast rollers, and hydraulic lines; weekly lubrication of mast rollers and chain pins; and monthly checks of battery electrolyte levels and terminal tightness. The side-shifter rails require greasing every 250 operating hours. Electronic diagnostics should be run quarterly to verify motor controller and CAN-bus integrity. Adjustable preload settings on steering and mast roller bearings are reachable from ground level, minimizing downtime. The external charger’s settings are verified every six months to ensure correct voltage and current profiles, extending battery lifespan. Brake system adjustments follow ISO recommendations, with drum clearances checked every 500 hours. Replacement of hydraulic filters is recommended at 1 000 hours or annually. Detailed maintenance procedures are documented in the operator’s manual, and on-board decals guide technicians through adjustment points for optimal performance and service life.

Environmental Impact of electric forklift truck

The XE4535A’s electric propulsion eliminates onsite exhaust emissions, improving indoor air quality and reducing greenhouse-gas footprint. Compared to diesel forklifts, battery-powered operation cuts CO₂ emissions by up to 50 % over a typical duty cycle. Energy efficiency gains through regenerative braking conserve up to 15 % of consumed electricity. The lead-acid battery is fully recyclable, with over 95 % of materials recovered through established recycling streams. Hydraulic oil and filter disposal comply with EU Directive 2008/98/EC, and biodegradable hydraulic fluids are optionally available to further minimize environmental risk. Noise emissions are under 70 dB(A), enhancing workplace conditions and reducing sound-pollution impacts. The powder-coat paint process emits virtually zero volatile organic compounds. By supporting corporate sustainability targets and regulatory compliance, the XE4535A contributes to long-term environmental stewardship initiatives.

Electric Forklift Truck XE4535A Comparison with Competitors

Compared with comparable 3.5 t electric forklifts, the XE4535A offers a superior combination of lift height, free-lift capacity, and operator comfort at a competitive total cost of ownership. Its 4.5 m triplex mast exceeds the 3.5 m standard on many rivals, enabling higher pallet racking without requiring specialized masts. The integrated side-shifter streamlines load handling, whereas many competitors charge extra for retrofit modules. The closed-cabin heater is standard equipment, improving operator retention and productivity in cold climates—features that are often optional or unavailable on alternate models. With regenerative braking and a high-efficiency motor, the XE4535A delivers energy savings of 10–15 % over industry averages. Robust component durability and extended service intervals reduce downtime by up to 20 %, further distinguishing it in the enterprise market.

Buy electric forklift truck XE4535A

The electric forklift truck XE4535A embodies advanced electric drivetrain technology, versatile load-handling capabilities, and enterprise-grade safety in a single package. Its 3.5 t capacity, 4.5 m triplex mast, side-shifter, and climate-controlled cabin deliver exceptional operational efficiency and operator comfort across diverse industrial environments. To acquire the XE4535A, select ADD TO CART for immediate purchase of standard configurations, or click GET OFFER to request a personalized quote—tailored with optional attachments, extended warranties, and service agreements. Elevate your material-handling performance today by integrating the XE4535A into your fleet, and experience the tangible benefits of reduced operating costs, improved throughput, and enhanced workplace safety.

The post Electric fork lift truck XE4535A 4500 mm 3500 kg appeared first on ROBOMATIS®.

Electric pallet jacks have stood as indispensable pieces of machinery in companies worldwide. With the increasing prevalence of larger loads and more frequent movements, there has arisen a necessity for innovative methods to alleviate the physical strain on workers. In response to ongoing technological advancements, the utilization of electric pallet trucks has gained prominence in recent times, offering a solution to mitigate the physical burden on workers. The electric pallet jack facilitates the efficient transport of bulky goods, concurrently reducing the risk of injuries during handling.

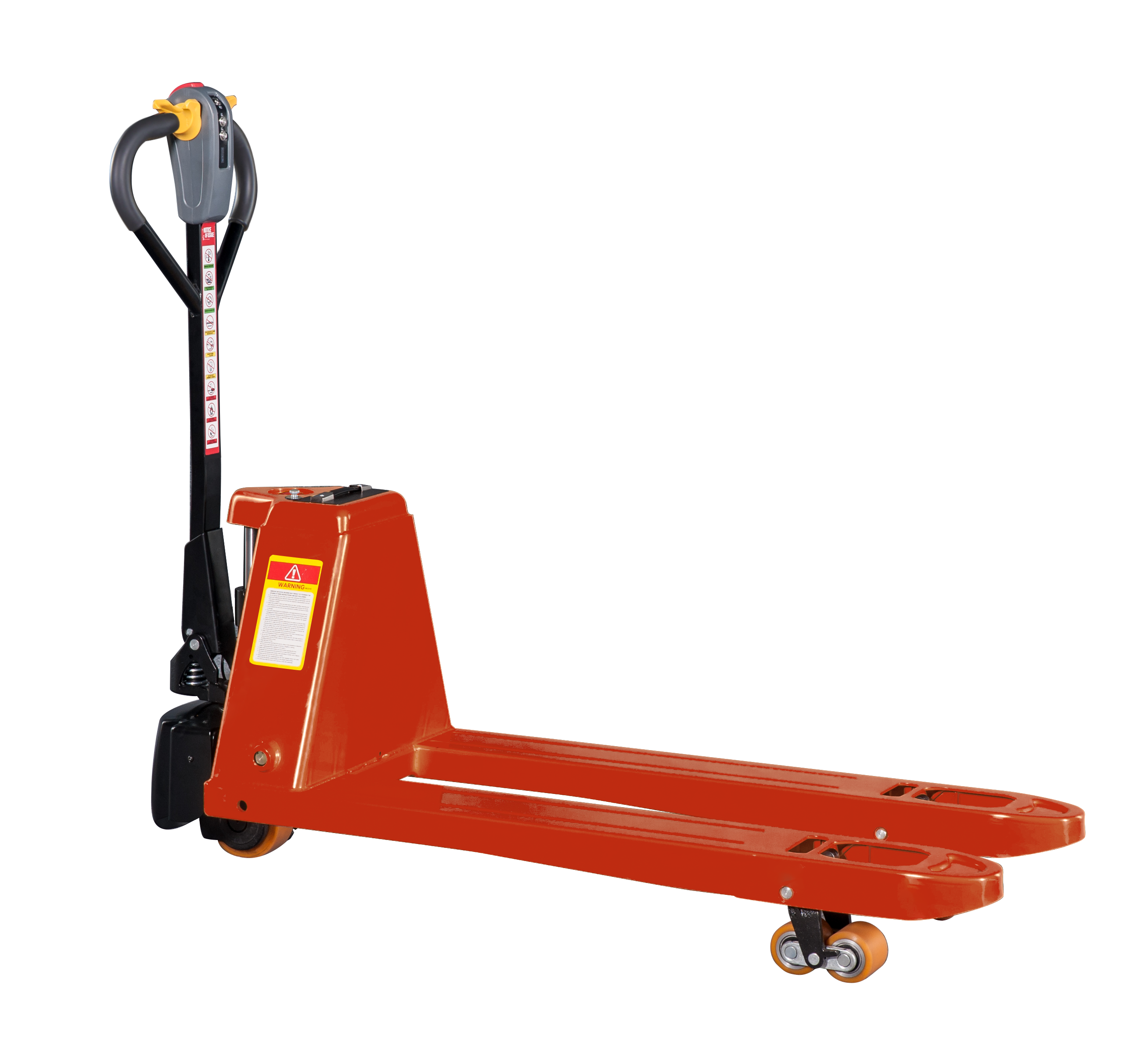

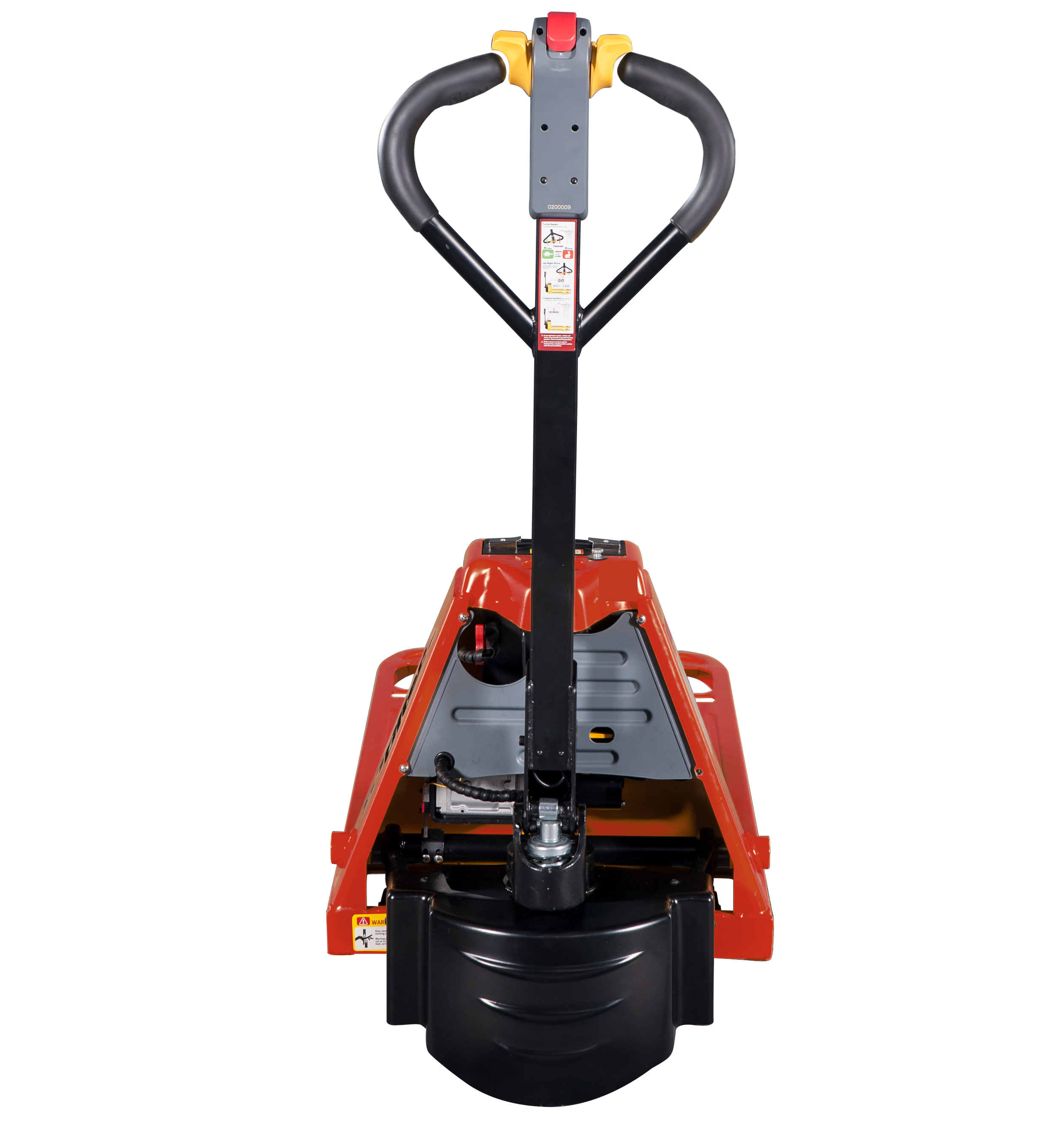

Electric pallet jack XT2 is characterized by its compact body, rendering it applicable to confined spaces where traditional hand pallet trucks are deployed. Furthermore, our electric pallet jack boasts easy maintenance, with most parts requiring similar attention as a conventional hand pallet truck.

Benefits of the Electric pallet jack:

• Swift battery removal in just 6 seconds
• Gradeability with a 1300kg load: 5%
• Equipped with brakes, allowing the vehicle to halt seamlessly irrespective of the terrain, be it a slope, truck tail lift, or platform
• Option to drive with the lever raised

Experience enhanced efficiency and safety with the ROBOMASS lithium electric pallet truck, designed to meet the evolving demands of modern workplaces.

Key features of Electric pallet jack 2000kg XT2

• Brushless drive motor, maintenance free
• Lithium battery maintenance free
• Recharge Alert
• Error code display
• Battery can be replaced in 6 seconds
• Drive Wheel can be replaced in 60 seconds
• The travelling speed of the electric pallet truck is 4.5 km/h without load and 4 km/h with load
• Slope Anti-slide

• Safety settings

• Fast Recharging

• Power On & Off

• Different driving options and modes

• Battery protection stopper

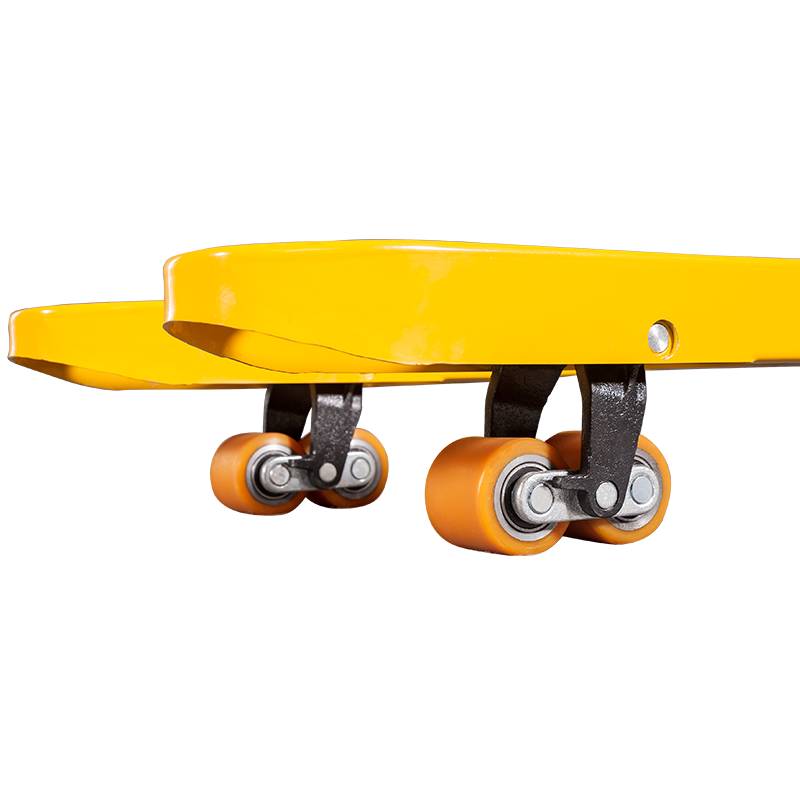

Basic Configuration of powered pallet jack 2000kg

High gradeability of Li-ion powered pallet jack 2000kg

Smart functions of powered pallet jack

• In up-right drive mode, the vehicle will move when the handle is operated at any position. Please avoid misoperation.
• Brake release mode is only for emergencies, not allowed for vehicles with normal conditions.
• Battery level display and alert when the battery is running low

• Fast and slow driving speeds with easy switching

• Engineer mode

• Driving with the steering control straightened

Specs of electric pallet truck XT2 ROBOMASS

Lithium pallet truck 2000kg advantages

A lithium pallet jack, also known as a lithium-powered pallet truck, serves as a crucial material handling device for efficiently moving pallets within warehouses or distribution centers. Our pallet truck is equipped with a cutting-edge lithium-ion battery, presenting numerous advantages over traditional lead-acid batteries.

One primary benefit of a lithium pallet jack lies in its extended battery life. Lithium-ion batteries can deliver up to three times the run time of lead-acid batteries, enabling operators to work for extended periods without the need for recharging. Additionally, lithium batteries boast a significantly shorter recharge time, typically requiring only a few hours to reach full charge, in stark contrast to lead-acid batteries, which may take up to 8 hours.

Another notable advantage of lithium pallet trucks is their lightweight and compact design compared to traditional pallet jacks. This characteristic enhances maneuverability in tight spaces and alleviates strain on operators. Furthermore, lithium batteries contribute to environmental friendliness as they do not contain toxic materials found in lead-acid batteries.

Moreover, semi-electric pallet trucks, commonly integrated with lithium technology, exhibit higher energy efficiency and lower maintenance costs compared to their lead-acid counterparts. They also demonstrate an extended lifespan, requiring less frequent battery replacement.

Choosing a lithium pallet jack presents a more efficient, effective, and environmentally conscious solution for material handling in warehouses and distribution centers. Investing in a lithium-powered pallet truck has the potential to elevate productivity, reduce downtime, and lower overall operating costs.

Why buy electric pallet truck 2000kg XT2

• Almost the same size and weight as a regular pallet jack
• 3 times more efficient than a manual pallet truck
• Easy maintenance
• One unit of Li-Ion electric pallet truck can replace 3 units of manual pallet truck
• It has a short charging time
• The battery can be replaced in 6 seconds – 2 batteries can support 24/7 work intensity
• Strong and with higher gradability than other electric pallet trucks on the market
• Brushless Motor – maintenance free

Where electric pallet truck 2000kg XT2 can be used

• Logistic warehouses
• Factories
• Supermarkets
• Truck tail lifts
• Tucks
• Workshops

Easy Maintenance of powered pallet jack 2000kg XT2 – make it a lifetime partner

• 1 minute to replace the handle
• 1 minute to replace the drive wheel
• 2 minutes to replace the controller
• 3 minutes to replace the motor

Buy powered pallet jack 2000kg XT2

Buy powered pallet jack 2000kg XT2 on our website by clicking on the button ADD TO CART and continue to Checkout to buy powered pallet jack online or click on the button GET OFFER and fill in all the information and we will prepare an offer for your company.

The post SMITH Electric pallet jack Lithium 2000kg XT2 appeared first on ROBOMATIS®.

The SMITH Semi-electric stacker 1000kg 350cm is a versatile and reliable piece of equipment designed to make lifting and transporting heavy loads easier and more efficient. This semi-electric stacker is capable of lifting up to 1000kg and has a maximum lifting height of 350cm or 3500mm. It is ideal for use in warehouses, factories, and other industrial settings where heavy loads need to be moved quickly and safely. One of the key features of the SMITH Semi-electric stacker is its semi-electric design. This means that it is powered by both electricity and manual labor, making it a more affordable and flexible option than fully electric stackers. The electric motor is used to lift and lower the load, while the operator uses manual force to move the stacker around the workspace. This combination of power sources allows for greater control and precision when lifting and transporting heavy loads.

The SMITH Semi-electric stacker is also designed with safety in mind. It comes equipped with a range of safety features, including an emergency stop button, a safety brake, and a safety guard to protect the operator from falling objects. The stacker also has a low center of gravity, which helps to prevent tipping and ensures that the load remains stable during transport. In addition to its safety features, the SMITH Semi-electric stacker is also designed for ease of use. It has a simple and intuitive control panel that allows the operator to easily adjust the lifting height and control the movement of the stacker. The stacker also has a compact and maneuverable design, making it easy to navigate through narrow aisles and tight spaces.

Another key feature of the SMITH Semi-electric stacker is its durability. It is made from high-quality materials that are designed to withstand the rigors of daily use in industrial settings. The stacker has a sturdy steel frame and a reinforced mast that can handle heavy loads without bending or warping. It also has high-quality wheels that are designed to provide smooth and stable movement, even when carrying heavy loads. Maintenance of the SMITH Semi-electric stacker is also relatively simple. The stacker requires regular inspections and maintenance to ensure that it is operating safely and efficiently. This includes checking the hydraulic oil level, inspecting the wheels and axles, and lubricating all movable parts. The stacker also requires regular charging to ensure that the battery is fully charged and ready for use.

Overall, the SMITH Semi-electric stacker 1000kg 350cm is a versatile and reliable piece of equipment that is ideal for use in a wide range of industrial settings. Its semi-electric design, safety features, ease of use, and durability make it a popular choice for businesses looking to improve their lifting and transporting capabilities. Whether you are moving heavy loads in a warehouse or factory, the SMITH Semi-electric stacker is a reliable and efficient solution that can help you get the job done quickly and safely.

Video of SMITH Semi-electric Stacker

Key Features of SMITH Semi-electric stacker 1000kg 350cm

• Model: SXPN1035
• EU charger
• Max Capacity: 1000kg
• Max Lifting Height: 3500mm
• Operation Type: Semi-electric (Electric lift, Manual push)
• Brand New: Includes battery and charger
• Working time 5-6 hours
• Charging time 7-8 hours
• Battery level indicator
• Load Capacity on Max Height: 500 KG
• Load Centre: 600 mm
• Power Type: Semi Electric. Electric Power to lift; Manual Push to move
• Walk-behind operation no license is required
• Control Panel: Fascia-mounted control panel with raise/lower buttons, emergency stop trigger, battery indicator, and hour-meter
• The in-built EU charger is a single phrase (wall plug) that can be easily changed
• Adjustable Fork: Forged forks with an adjustable width
• Easy service and maintenance
• Lockable wheel
• Wheels: Brake-enabled with 360-degree rotation. Large diameter steered rear wheel for easy movement across any surface
• Electric lift and manual push
• Efficient in factories, warehouses, and logistics centers. Great in narrow passages, floors, and other high-rack warehouses
• Flexible, silent, and environmental
• Warranty
• With electric lift and manual push, the semi-electric pallet stacker is easy to control, and environmental efficiency

Specifications of SMITH Semi-electric stacker 1000kg 350cm

Lifting curve of SMITH Semi-electric stacker 1000kg 350cm

Key Features of SMITH Semi-electric stacker 1000kg 350cm

Semi-Electric Design: The SMITH Semi-electric stacker features a unique semi-electric design, utilizing both electric and manual power for lifting and movement. This design enhances affordability and flexibility compared to fully electric stackers.

Safety First: Equipped with essential safety features, including an emergency stop button, a safety brake, and a safety guard, the stacker ensures the well-being of operators by protecting them from potential hazards such as falling objects. Its low center of gravity prevents tipping and ensures stability during transport.

Ease of Use: The stacker is designed for user-friendly operation, featuring an intuitive control panel that allows operators to easily adjust the lifting height and control the stacker’s movement. Its compact and maneuverable design enables smooth navigation through narrow aisles and tight spaces.

Durability: Built to withstand the demands of daily industrial use, the stacker boasts a sturdy steel frame, a reinforced mast, and high-quality wheels for stability. These features contribute to its durability, allowing it to handle heavy loads without bending or warping.

Simple Maintenance: Maintenance is simplified with regular inspections of hydraulic oil levels, wheel and axle checks, and lubrication of movable parts. The stacker requires regular charging to ensure the battery is fully charged and ready for use.

How does Semi-electric stacker SMITH operates

The SMITH Semi-electric stacker operates through a combination of electric and manual mechanisms, providing a flexible and efficient solution for lifting and transporting heavy loads in industrial environments. Here’s an overview of how it works:

1. Electric Lifting Mechanism:
   • The stacker is equipped with an electric motor that powers the lifting mechanism. This motor is responsible for raising and lowering the forks or platform to adjust the height of the load.
   • The operator controls the electric lifting mechanism using the intuitive control panel, which typically includes raise and lower buttons for precise control over the lifting process.
2. Manual Movement Control:
   • Unlike fully electric stackers, the SMITH Semi-electric stacker incorporates manual movement control. The operator uses manual force to push or pull the stacker to navigate it within the workspace.
   • This manual control provides flexibility in movement and allows the operator to maneuver the stacker through narrow aisles and tight spaces with ease.
3. Hydraulic System:
   • The lifting mechanism is often assisted by a hydraulic system. When the electric motor is activated to lift the load, hydraulic fluid is pressurized to move the hydraulic cylinder, which in turn raises the forks or platform.
   • The hydraulic system ensures a smooth and controlled lifting process, allowing for precise positioning of the load at various heights.
4. Safety Features:
   • The stacker is equipped with safety features to protect the operator and prevent accidents. This typically includes an emergency stop button that instantly halts all electric and hydraulic operations in case of an emergency.
   • A safety brake ensures that the load remains stable during transport, and a safety guard protects the operator from falling objects or other potential hazards.
5. Compact and Maneuverable Design:
   • The stacker is designed to be compact and maneuverable, making it suitable for navigating through confined spaces. This is especially important in warehouses or factories where space is limited.
6. Power Source:
   • The stacker is powered by a rechargeable battery, and a built-in charger facilitates easy charging. Regular charging maintenance is necessary to ensure that the battery is fully charged and ready for use.

In summary, the SMITH Semi-electric stacker combines the efficiency of electric lifting with the flexibility of manual movement. The integration of safety features, hydraulic systems, and a user-friendly control panel makes it a reliable and versatile solution for various material handling tasks in industrial settings.

Step-by-Step Guide to Operating the SMITH Semi-electric Stacker:

1. Initial Inspection:

• Before operation, conduct a visual inspection of the stacker. Check for any visible damage, loose bolts, or worn-out components. Ensure that the wheels, forks, and lifting mechanism are in good condition.

2. Battery Check:

• Ensure that the stacker’s battery is adequately charged. If not, connect the stacker to a power source using the built-in charger. Regularly check and maintain the battery to prolong its life and ensure optimal performance.

3. Start-Up:

• Turn on the stacker using the power switch or key provided. This activates the control panel and electric components.

4. Familiarize Yourself with the Control Panel:

• Get acquainted with the control panel, which typically includes raise and lower buttons, an emergency stop button, and other relevant controls. Refer to the user manual for specific details on your stacker model.

5. Adjust Fork Width (if applicable):

• If the stacker is equipped with adjustable forks, set them to the appropriate width for the load you are handling. This ensures a secure fit and stability during lifting.

6. Approach the Load:

• Position the stacker in front of the load, aligning the forks with the pallet or item to be lifted. Use the manual pushing function to maneuver the stacker into the correct position.

7. Lifting the Load:

• Press the “raise” button on the control panel to activate the electric lifting mechanism. Gradually lift the load to the desired height. Monitor the load and surroundings during the lifting process.

8. Transporting the Load:

• Once the load is lifted to the required height, use the manual pushing function to navigate the stacker to the desired location. Exercise caution when moving, especially in confined spaces or areas with obstacles.

9. Lowering the Load:

• When ready to lower the load, press the “lower” button on the control panel. Lower the load smoothly and steadily, avoiding sudden movements. Ensure that the load is securely positioned before moving.

10. Emergency Stop:

• In case of an emergency or if any unsafe conditions arise, press the emergency stop button immediately. This will halt all electric and hydraulic operations, ensuring the safety of the operator and surrounding personnel.

11. Shut Down:

• Once the operation is complete, turn off the stacker using the power switch or key. Park the stacker in a designated area, and if applicable, connect it to the charger for the next use.

12. Post-Operation Inspection:

• Conduct a post-operation inspection to ensure that the stacker is in good condition. Look for any signs of wear, damage, or issues that may need attention. Report any concerns to maintenance personnel.

Buy Semi-electric stacker or get official offer

Buy Semi-electric stacker online by clicking the button ADD TO CART and continue to checkout. We will process the order and ship the semi-electric stacker to the desired address. Delivery time is around 3-7 working days. Alternatively, if you need an official offer click the button GET OFFER and or get an official offer for semi-electric stacker SMITH with a loading capacity of 1000kg and lifting height 350cm.

The post SMITH Semi-electric stacker 1000kg 350cm 3500mm appeared first on ROBOMATIS®.

The SMITH Heavy-duty Electric Stacker is a robust and efficient material handling solution designed to meet the demands of heavy-duty industrial environments. With a load capacity of 2000kg and a lifting height of 4500mm, this electric stacker is engineered to provide reliable performance in various material handling applications. Equipped with advanced features and high-quality components, the SMITH Heavy-duty Electric Stacker offers exceptional lifting capabilities, precise control, and enhanced safety, making it an ideal choice for warehouses, manufacturing facilities, and distribution centers.

Key Features of Heavy-duty Electric stacker SMITH 2000kg 450cm

1. Powerful AC Motor and ZF Friedrichshafen Transmission: The stacker is powered by a high-performance AC motor and ZF Friedrichshafen transmission, providing superior acceleration performance, improved work efficiency, and energy savings. This combination ensures smooth and efficient operation, allowing for seamless handling of heavy loads.
2. High Power MOSFETS Driver: The stacker features a high-power MOSFETS driver with high frequency, efficient, and quiet operation. It offers stepless speed regulation and reverse braking function, enhancing safety and control during operation. The improved temperature protection and compensation functions ensure thermal protection and stable output, contributing to the stacker’s overall reliability.
3. Integrated Operation Handle: The operation handle integrates essential controls, including the key switch, electric meter, horn, up and down buttons, and turtle speed switch, providing convenient and easy operation. The extended design of the operation handle aligns with ergonomic principles, offering comfortable and intuitive control for the operator.
4. Side Drive Design: The side-driven design effectively reduces the size of the operation channel, allowing for operation in narrow spaces. With a small turning radius and improved field of view, the stacker is well-suited for maneuvering in confined areas, optimizing operational efficiency.
5. YONGCI Motor Drive System: The stacker is equipped with a YONGCI motor drive system known for its small size, light weight, low loss, and high efficiency. This system enhances the overall performance of the stacker, providing reliable and responsive operation.

Specifications of SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m

• Manufacturer: SMITH
• Model: CXL20GF
• Power Unit: Electric
• Operation: Pedestrian
• Load Capacity: 2000 kg
• Height of lowered stacker: 2100 mm
• Max lifting height: 4500 mm
• Free lift: 1686 mm
• Load Centre: 600 mm
• Fork size: 570*1150 mm
• Curtis Controller
• Load Capacity at Max Height: 550 kg
• Axle Centre to Fork Face: 672 mm
• Wheel Base: 1384 mm
• Service Weight with Battery: 1126 kg
• Wheels Type: PU
• Continuous working time 5-6 hours
• Battery: 24V/210 Ah
• External Charger: 24V/30A

Video of electric stacker 450cm, 2000kg SMITH

Benefits of Electric stacker SMITH 2t 4,5m

The SMITH Heavy-duty Electric Stacker is designed to meet the rigorous demands of industrial material handling, offering exceptional performance, precise control, and enhanced safety features. With its advanced motor and transmission system, integrated operation handle, and compact design, this electric stacker is a reliable and efficient solution for various material handling tasks. Whether in narrow spaces or demanding environments, the SMITH Heavy-duty Electric Stacker delivers the power, control, and reliability needed to optimize operational productivity and safety.

• Heavy-duty Electric Stacker: Robust solution for industrial material handling needs.
• Powerful AC Motor: Superior acceleration and energy-efficient performance.
• Precise Control: MOSFETS driver with stepless speed regulation and reverse braking.
• Integrated Operation Handle: Convenient controls for seamless operation.
• Ergonomic Design: Extended handle for comfortable and intuitive use.
• Space-efficient: Side-driven design for narrow spaces and small turning radius.
• YONGCI Motor: Small, lightweight, and highly efficient motor drive.
• Advanced Safety Features: Waterproof micro-switches for reliable operation in harsh conditions.
• High Lifting Capacity: Efficient lifting pump station for heavy goods handling.
• Turtle Speed Switch: Enables precise control during delicate operations.
• Compact and Nimble: Ideal for maneuvering in tight warehouse environments.
• Versatile Applications: Suitable for warehouses, manufacturing, and distribution centers.

Specs of SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m

Lifting curve of electric stacker SMITH 2000kg

Buy an electric stacker of 2000kg, 450cm, or get an offer

Explore the efficiency and power of the Electric Stacker 2000kg with a lifting height of 450cm – the perfect solution for your heavy-duty material handling needs. Elevate your operations with superior acceleration, precise control, and advanced safety features. Whether you’re looking to purchase this robust electric stacker outright or seeking a tailored offer, we’ve got you covered. Experience the convenience of seamless operation, ergonomic design, and a compact footprint, making it ideal for various industrial settings. Don’t miss the opportunity to enhance your material handling capabilities – buy the Electric Stacker 2000kg, 450cm today online by clicking the button ADD TO CART or request a personalized offer by clicking the button GET OFFER to meet your specific requirements. Elevate your efficiency with a stacker designed for the demands of your workspace.

The post SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m appeared first on ROBOMATIS®.

Self-lifting electric stacker is suitable for loading and unloading and handling of goods with trays, and can transport up and down vehicles together with the goods. It has the characteristics of small size, smooth operation, excellent performance and convenient. The automatic climbing forklift is composed of lifting cylinder, inner and outer door frame column components, frame, movable door seat, lifting fork and handle power supply and other electrical components.

The SMITH Self-lifting electric stacker is a versatile and efficient logistics equipment designed to make material handling tasks easier and safer. With a maximum load capacity of 500kg and a lifting height of 1500mm, this stacker is ideal for vans and delivery trucks. One of the key features of the SMITH Self-lifting electric stacker is its self-lifting mechanism. This means that the stacker can lift it self in the van or truck. The self-lifting mechanism also makes the SMITH stacker more ergonomic and user-friendly. Delivery staff no longer need to strain their backs or arms to lift heavy loads, which can reduce the risk of workplace injuries and improve productivity.

Additionally, the stacker’s compact design and small turning radius make it easy to maneuver in tight spaces, such as narrow aisles or crowded storage areas. Another advantage of the SMITH Self-lifting electric stacker is its durability and reliability. The stacker is made of high-quality materials, such as steel and aluminum, which can withstand heavy use and harsh environments. The hydraulic system is also designed to be maintenance-free, which means that operators can focus on their tasks without worrying about downtime or repairs. In terms of safety, the SMITH Self-lifting electric stacker is equipped with several features to protect both the operator and the load.

Applications of Self-loading pallet truck

The self-loading pallet stacker is suitable for various delivery trucks and vans including wagons, lorries and container trailers.

Dimensions and key features of Self-loading Electric Stacker SMITH

• Overall Length: 1555mm
• Overall Width: 790mm
• Overall Height: 1817mm
• Min. Turning Radius: 1120mm
• Fork size:540*1150mm
• Curtis Controller
• Battery(2*12V/75AH)
• External Charger(24V/10A)
• Charging time: 7-8hours
• Working time: 50 work cycles (load and unload with load called 1 cycle)

Video of SMITH Self-lifting electric stacker

Key features of Self-lifting electric stacker SMITH

• Dual Oil Circuit Control System:
  The electric stacker incorporates a dual oil circuit control system, allowing precise control over movements. The cylinder piston rod’s bidirectional movement is a key feature, ensuring adaptability in various operational scenarios.
• Independent Inner Door Frame:
  The autonomy of the inner door frame is a distinctive feature. Linked directly to the fork bolt, its vertical movement eliminates the need for roller board transfers, streamlining the lifting process.
• Movable Door Seat:
  The door seat, designed for relative motion with the lifting of the rack or cargo fork, extends when the goods reach the platform height. This seamless cycle enhances operational efficiency.

Features of Self-lifting electric stacker SMITH

1. Versatile functionality: Integrates transporting, stacking, and climbing capabilities for a multi-functional material handling solution.
2. Efficient loading and unloading: Can ascend into the carriage, making it a valuable assistant for car and truck drivers during cargo handling.
3. Lightweight and user-friendly: Designed for ease of operation with its lightweight construction, ensuring a comfortable user experience.
4. Enhanced maneuverability: Equipped with support legs featuring a swinging guide wheel, facilitating smooth pushing of the equipment into the carriage. Additionally, employs a double linkage cylinder for seamless locking and lifting movements in alternating succession.

Specs of SMITH Self-lifting electric stacker 500kg 1500mm

Lifting curve of Self-loading pallet truck SMITH:

Benefits of Self loading pallet truck SMITH:

1. Versatile Logistics Equipment:
   • Combines stacker and taillift functionalities for efficient material handling.
2. Precision Craftsmanship:
   • Contains critical components such as a lifting mechanism, robust frame and CURTIS handle.
3. Compact and Efficient:
   • Compact size, smooth operation, and excellent performance for diverse handling needs.
4. Self-Lifting Mechanism:
   • Unique self-lifting capability enhances ergonomics and user-friendliness.
5. Ideal for Vans and Trucks:
   • Maximum load capacity of 500kg and lifting height of 1500mm suits delivery vehicles.
6. Maneuverability in Tight Spaces:
   • Compact design and small turning radius for easy navigation in confined areas.
7. Durable and Reliable Build:
   • Constructed with high-quality materials like steel and aluminum for longevity.
8. Maintenance-Free Hydraulic System:
   • Designed to minimize downtime and repairs, allowing operators to focus on tasks.
9. Dual Oil Circuit Control System:
   • Provides precise control over movements with bidirectional cylinder piston rod.

Dimensions of SMITH Self-lifting electric stacker 500kg 1500mm

How does the Self-lifting electric stacker SMITH work?

Cargo Loading and Unloading Procedure for Self-Lifting Pallet Truck:

Before Operation:

• Ensure that the weight of the cargo does not exceed the load capacity of the self-lifting pallet truck
• Insert the forklift fork into the space under the tray, positioning it to ensure the load is centered within the load center
• Press the upper button (right) to slightly lift the cargo, then release the button to pull the forklift
• Ensure the forklift door post is within 80mm of the edge of the carriage, avoiding accessory parts of the carriage.

Goods Loading into Vehicle:

a. Approach Vehicle:

• Position the self-lifting pallet truck on the side of the delivery vehicle
• Ensure the head of the cargo fork is at least 10cm away from the vehicle
• Press the rise button to lift the cargo

b. Goods Placement into Carriage:

• After lifting the goods slightly above the vehicle platform, release the rise button.
• Slowly push the self-lifting pallet truck into the vehicle.
• Ensure the forklift door post is within 80mm of the edge of the carriage, avoiding accessory parts of the carriage.

c. Platform Pull:

• Press the drop button to lower the fork to the vehicle platform
• Lift the rack until the door seat is more than 5cm above the ground
• Hold stacker and pull the platform on the stacker back to the stop

d. Lift Frame and Door Seat:

• Hold the frame with one hand
• Press the drop button to lift the frame and stacker’s platform

e. Platform and Wheel Entry:

• When the frame reaches the top stop point, release the drop button
• Push the platform so that the guide wheel enters the vehicle

f. Push the electric stacker in the vehicle:

• Press the rise button to slightly raise the goods
• Push the rack to make the universal wheel enter the vehicle interior

g. Parking and Final Steps:

• Press the drop button to lower the fork onto the vehicle platform

Exiting Carriage and Stacker Operation Instructions:

Before Exiting:

a. Forklift Positioning:

• Press the rise button to lift the fork to the edge of the car

Exiting Carriage:

b. Forklift Movement:

• Move the forklift slowly toward the vehicle exit
• Press the down button to lower the fork to the platform

c. Rack Lowering:

• Support the frame and back out the stacker’s platform, positioning it from front to back
• Press the rise button to lower the frame

d. Push Door Seat into Back Seat:

• When the frame is more than 5 cm above the ground, release the brake and push the platform forward

Exiting Carriage and Final Steps:

e. Leave the Carriage:

• Press the rise button to lower the rack and door seat to the ground
• Slightly raise the cargo fork
• Move the forklift truck to exit the delivery vehicle

Note:

• Always ensure the area is clear of obstacles before moving the stacker
• Follow all safety guidelines provided in the manufacturer’s manual

Self-loading pallet truck

Distinguished beyond the realms of a conventional stacker or taillift, the SMITH represents a remarkable advancement in lifting equipment. Merging the inherent advantages of both, this innovative apparatus delivers a comprehensive solution, yielding not only substantial cost savings but also heightened operational efficiency. Its integrated design obviates the requirement for additional lifting equipment, markedly streamlining the loading process and, notably, eradicating the necessity for double pallet handling. The SMITH, recognized for its user-friendly interface, not only expedites operations but also mitigates physical strain and fatigue among personnel, significantly reducing the likelihood of work-related injuries, particularly those affecting the back.

What sets the SMITH apart is its distinctive capability as the sole semi-electric stacker/lift loader that autonomously lifts itself into and out of delivery vehicles. This distinctive feature renders superfluous the dependency on specialized lorries or the expenditure associated with being equipped with taillifts. Additionally, the a need for transporting separate pallet trucks.

Tailored for compatibility with open-bottom pallets, skids, and crates, the SMITH stands as the optimal choice for the seamless transportation of a diverse range of heavy items. From medical and office equipment to white goods and UPS apparatus, the SMITH epitomizes a fusion of convenience, efficiency, and versatility, redefining the paradigm of corporate material handling operations.

Buy Self-loading pallet truck or get an offer

Buy Self-loading pallet truck online by simply clicking the ADD TO CART button and continuing to Checkout. If self-loading pallet truck is in stock we deliver it in around 3-7 working days. If you need an official offer for self-loading electric pallet truck click on the button GET OFFER, and our staff will prepare a personalized offer for your company.

The post SMITH Self-lifting electric stacker 500kg 1500mm appeared first on ROBOMATIS®.
