LINEBOX-03 Box Packaging Line

The LINEBOX-03 Box Packaging Line is an integrated automated solution designed for efficient and consistent carton forming, sealing, and conveying operations within industrial packaging environments. It combines four coordinated modules – an automatic case erector, motor-driven roller conveyor, non-driven roller conveyor, and automatic box taper – to streamline the process of erecting, transferring, and sealing up to 720 boxes per hour. The line is suitable for manufacturing, logistics, e-commerce, and food industries requiring continuous carton packaging flow. Constructed from high-strength steel and equipped with servo-controlled folding mechanisms, the system delivers consistent output while minimizing human intervention. The modular configuration allows each section to operate in perfect synchronization, maintaining balanced throughput and reducing downtime. With its PLC-based control system, 18 m/min conveyor speed, and compact footprint of 6 m × 2 m, LINEBOX-03 provides enterprises with a cost-effective, durable, and easy-to-maintain solution for automated carton handling and sealing.

LINEBOX-03 Box Packaging Line video

FAQ of LINEBOX-03 Box Packaging Line

1. What is the production capacity of the box packaging line?
   The line produces approximately 720 boxes per hour, equivalent to 12 boxes per minute, depending on carton size and operator efficiency.
2. Which carton dimensions are supported by the system?
   It supports carton sizes from 200–500 mm in length, 200–400 mm in width, and 150–350 mm in height. These limits ensure smooth transfer through each module.
3. What tape types can be used for sealing?
   The box taper operates with BOPP or Kraft tape of 48–60 mm width, standard 75 mm inner core, suitable for most industrial packaging materials.
4. What utilities are required to operate the box packaging line?
   The line runs on AC 220 V / 50 Hz / single phase electrical supply and requires compressed air at 0.6–0.8 MPa for pneumatic functions of the case erector.
5. How many operators are needed?
   Only one operator is typically required to load carton blanks and supervise operation. For higher volume production, a second operator may assist with product loading or palletizing.
6. How long does it take to change carton size?
   Changeover between carton formats is completed within 3–5 minutes using handwheel or pneumatic adjustments. Stored size presets simplify repetitive setups.
7. Can the line be integrated with existing automation?
   Yes, the system features a modular design and can connect to upstream product filling, labeling, weighing, or palletizing lines using standard mechanical and PLC interfaces.
8. What is the total space required for installation?
   The complete line requires approximately 6.1 meters in length and 2.1 meters in width, with an operational clearance of at least 1 meter for safe access and maintenance.
9. What regular maintenance is recommended?
   Routine maintenance includes roller lubrication, belt inspection, and sensor cleaning. Pneumatic filters and tape heads should be checked weekly to ensure continuous operation.
10. What is the expected return on investment (ROI)?
    By automating erection, sealing, and conveying, the line significantly reduces manual labor and material waste, typically achieving ROI within 12–18 months in medium to large production environments.

Specifications of LINEBOX-03 Box Packaging Line

ROI – Operational Efficiency of the LINEBOX-03 Box Packaging Line

The box packaging line reduces manual labor requirements and increases packaging consistency. By automating the forming, sealing, and transfer of cartons, it minimizes the need for multiple operators traditionally required for manual assembly. With an average production capacity of 720 boxes per hour, companies can achieve substantial cost reductions per unit over time. The servo-controlled case erector ensures accurate folding and adhesive application, preventing carton waste and material losses. Integration of a motorized conveyor system with adjustable speed supports continuous workflow and prevents bottlenecks. The investment pays back quickly through improved throughput, reduced downtime, and optimized labor distribution, resulting in an estimated ROI within 12–18 months for medium-volume operations.

Key Features and Benefits of LINEBOX-03 Box Packaging Line

The box packaging line offers features that directly enhance productivity and reliability. Its automatic case erector manages precise carton opening and bottom flap folding with servo-assisted motion. The RUBBER automatic taper applies tape efficiently with consistent pressure, ensuring a professional seal. The RC2M-D conveyor maintains stable movement at 18 m/min, while the RC1M passive conveyor functions as a buffer zone to accommodate variable packaging speeds. The modular structure allows individual section replacement or future expansion without altering the entire line. Built with low-noise steel rollers, durable frames, and a PLC-based control system, it ensures long operational life and minimal maintenance. The result is reduced human intervention, fewer errors, and increased process reliability for continuous industrial operation.

How to Use LINEBOX-03 Box Packaging Line

Operating the LINEBOX-03 box packaging line requires minimal manual input. Operators load flat carton blanks into the magazine of the AUTOBOX10 erector, which automatically extracts, opens, and folds the bottom flaps. The erected cartons are transferred via the motor-driven conveyor to the packing station, where products are placed inside. After filling, the carton proceeds through the RUBBER automatic taper, where the top flaps are folded and sealed using 48–60 mm BOPP or Kraft tape. The finished boxes exit through the non-driven RC1M conveyor, ready for palletizing or dispatch. The system includes emergency stop buttons and adjustable height stands for ergonomic operation. Routine inspection of belts, air pressure, and sensors ensures smooth performance.

Where to Use LINEBOX-03 Box Packaging Line

The box packaging line is suitable for enterprises engaged in high-volume or continuous packaging of standardized carton sizes. Typical applications include food and beverage manufacturing, e-commerce distribution centers, electronics assembly plants, pharmaceutical packaging lines, and logistics warehouses. Any facility requiring uniform carton erection and sealing benefits from this system. It is particularly efficient for secondary packaging or final product dispatch stages where speed and consistency are critical. Companies with fluctuating order volumes can use the modular layout to adapt easily between batch sizes without complex reconfiguration.

Design and Compatibility of LINEBOX-03 Box Packaging Line

The LINEBOX-03 box packaging line features a compact design measuring approximately 6095 mm in total length and 2085 mm in overall width. The working height of 650 mm ensures ergonomic operation for standing personnel. The steel frame structure provides mechanical rigidity, while adjustable legs facilitate height alignment with existing conveyors. The system is compatible with carton materials of various grades, including single-wall and double-wall corrugated boxes. The automatic taper accepts BOPP or Kraft tapes within the 48–60 mm range, allowing flexibility for different sealing standards. The modular interface supports integration with upstream and downstream automation such as labeling, weighing, or palletizing units.

Performance and Capabilities of LINEBOX-03 Box Packaging Line

The box packaging line maintains throughput efficiency while ensuring consistent sealing quality. The servo-driven case erector provides precise motion control, while the PLC system synchronizes timing across the conveyors and taper. The line operates steadily at a nominal rate of 12 boxes per minute, suitable for mid-scale industrial operations. The low-noise drive system (< 60 dB) minimizes operator fatigue. The RC2M-D conveyor features a gear ratio of 12.5:1 for optimal torque and speed balance. The taper applies pressure-controlled sealing to prevent tape failure during transport. This coordinated setup ensures minimal product handling time, consistent packaging accuracy, and extended machine service life.

Safety and Durability of LINEBOX-03 Box Packaging Line

The LINEBOX-03 box packaging line includes several safety measures to protect operators and maintain long-term reliability. Each module is fitted with emergency stop switches and transparent safety guards to prevent access to moving parts. The pneumatic systems include pressure regulators and air filters to ensure controlled and safe operation. The robust steel construction and powder-coated surfaces enhance corrosion resistance in industrial environments. Electrical components are compliant with CE safety standards, ensuring conformity with European regulations. Designed for 24-hour operation, the system is engineered to sustain prolonged cycles without performance degradation, making it suitable for demanding production lines.

Adjustments and Maintenance of LINEBOX-03 Box Packaging Line

The box packaging line requires minimal adjustment for routine operation. Carton size changes are handled through handwheel or pneumatic adjustments in the case erector and taper modules. Operators can switch formats within minutes without tools. Preventive maintenance includes lubricating rollers, inspecting belts and sensors, and checking tape tension. The control interface provides diagnostic alerts and cycle counters for maintenance scheduling. Because of its low-wear design and accessible components, downtime for servicing is minimal. Following standard maintenance procedures ensures maximum efficiency and extends the overall service life of the system.

Buy LINEBOX-03 Box Packaging Line

To purchase the LINEBOX-03 box packaging line, clients can select the preferred configuration and click ADD TO CART for direct order placement or GET OFFER to receive a personalized quotation based on production requirements. The system offers a proven method to reduce manual packaging effort, improve throughput, and enhance carton presentation quality. Its combination of precision engineering, energy efficiency, and modular design makes it a strategic investment for any enterprise seeking to modernize packaging operations. With reliable after-sales service and available spare parts, LINEBOX-03 ensures continuous operation and long-term value for industrial users.

The post LINEBOX-03 Box packaging Line – 720 boxes/h appeared first on ROBOMATIS®.

RUBBER Automatic Box Taper Machine

Automatic box taper machine is designed for efficient and standardized carton sealing in industrial and commercial operations. This equipment ensures consistent packaging quality across production lines while reducing manual labor and human error. The RUBBER automatic box taper machine uses pressure-sensitive adhesive tapes such as BOPP and Kraft tape to seal cartons in a reliable and uniform manner. With a power supply of 220V/50Hz and 370W output, it provides stable and continuous operation for demanding environments. The machine supports carton dimensions from L300–700mm, W120–480mm, and H120–480mm, making it suitable for a wide range of packaging requirements. Operating at a sealing speed of 12 cases per minute, it increases productivity while maintaining accuracy in carton closing. Equipped with a 750mm height workbench and robust side belt drive system, the machine facilitates integration with automated conveyor systems in warehouses and production facilities. Dimensions of L1780 × W886 × H1685mm and weight of 180kg ensure a compact yet stable construction that is durable in long-term industrial use. Its application field includes chemical fiber industries, tobacco leaf drying, pharmaceuticals, publications, household appliances, refrigeration, ceramics, and logistics operations. The RUBBER automatic box taper machine is built to improve operational efficiency, reduce packaging waste, and ensure standardized sealing quality across multiple packaging lines.

RUBBER Automatic Box Taper Machine video

FAQ of RUBBER Automatic Box Taper Machine

1. What carton sizes can the automatic box taper machine handle?
   The machine supports cartons with dimensions from L300–700mm, W120–480mm, and H120–480mm, ensuring flexibility for various packaging requirements.
2. What type of adhesive tape is compatible with the automatic box taper machine?
   It is compatible with BOPP and Kraft adhesive tapes, in widths ranging from 48mm to 60mm.
3. What is the sealing speed of the automatic box taper machine?
   The equipment operates at a sealing speed of 12 cases per minute, suitable for medium to high-volume production lines.
4. What is the power requirement for the automatic box taper machine?
   It requires a 220V / 50Hz power supply with a rated power of 370W.
5. Is the automatic box taper machine easy to integrate with existing conveyor systems?
   Yes, the machine has a standard 750mm workbench height, allowing seamless integration with infeed and outfeed conveyors.
6. What is the weight and size of the automatic box taper machine?
   The machine dimensions are L1780 × W886 × H1685mm, with a gross weight of 180kg, providing compact yet stable construction.
7. What safety features are included in the automatic box taper machine?
   It includes operator safety instructions, blade protection, and requires safe operating distance to reduce risks during operation.
8. What industries typically use the automatic box taper machine?
   Industries such as manufacturing, logistics, pharmaceuticals, household appliances, ceramics, publishing, and refrigerated goods benefit from its application.
9. How much maintenance does the automatic box taper machine require?
   It requires regular inspection of belts, blades, and tape rollers, as well as cleaning adhesive residue and lubricating moving parts for smooth operation.
10. What purchasing options are available for the automatic box taper machine?
    Customers can add the product directly to cart for immediate purchase or request a personalized quotation by selecting the Get Offer option.

Specifications of RUBBER Automatic Box Taper Machine

ROI of RUBBER Automatic Box Taper Machine

Automatic box taper machine ensures measurable return on investment for companies engaged in medium to large scale packaging. By automating carton sealing, it reduces dependency on manual labor and lowers the risk of inconsistent sealing quality. The sealing speed of 12 cases per minute translates to significant time savings in high-volume operations, reducing bottlenecks in production lines. Lower labor involvement minimizes training costs and employee fatigue, while ensuring higher operational safety. Energy consumption remains low with a 370W power configuration, making it cost-efficient to operate continuously. Carton sealing waste is minimized as the machine applies consistent tape tension and alignment. This optimization prevents product damage during storage or transport and reduces rework costs. In sectors such as manufacturing, logistics, and distribution, the equipment provides long-term cost savings through reliable performance, limited downtime, and extended service life. With its strong steel construction and durable components, the RUBBER automatic box taper machine requires minimal maintenance, which further increases profitability and efficiency over time.

Key Features and Benefits of RUBBER Automatic Box Taper Machine

Automatic box taper machine integrates key features that deliver measurable benefits for industrial buyers. It supports cartons with variable dimensions from 300 to 700mm in length and up to 480mm in height and width, which enables adaptability across product ranges. Its side drive belt system provides stable carton transport during sealing, ensuring consistent alignment. The use of both BOPP and Kraft tape allows flexibility in material sourcing and compliance with different packaging standards. With a standard workbench height of 750mm, it can be easily combined with conveyor systems to create a continuous packaging line. The machine’s steel frame and 180kg weight guarantee stability during operation, even in high-speed production environments. Equipped with a Taiwan Chengbang motor, it ensures durability and long service life. These features translate into reduced manual workload, optimized packaging efficiency, and long-term reliability in industrial applications.

How to Use RUBBER Automatic Box Taper Machine

Automatic box taper machine is designed for straightforward operation in packaging facilities. First, the machine should be placed on a flat surface and connected to a 220V/50Hz power supply. Operators adjust the machine height and width settings to match the carton dimensions, within the supported L300–700mm, W120–480mm, and H120–480mm range. Adhesive tape of 48–60mm should be loaded onto the tape cassette. Once adjusted, cartons are placed on the conveyor rollers, where the side belts automatically transport the carton through the sealing head. The top and bottom flaps are sealed simultaneously using pressure-sensitive adhesive tape. Operators should always maintain safe distance from the blades inside the sealing cassette. For efficient operation, the machine can be integrated with infeed and outfeed conveyors to establish a continuous packaging line. This process minimizes manual handling, reduces sealing time, and ensures a professional and uniform finish on each carton.

Where to Use RUBBER Automatic Box Taper Machine

Automatic box taper machine is suitable for companies requiring efficient carton sealing across multiple industries. Manufacturing facilities producing consumer goods, electronics, and household appliances benefit from consistent packaging standards. Logistics providers and warehouses integrate this machine to streamline outbound packaging operations, ensuring cartons are properly sealed before transportation. The pharmaceutical and chemical fiber industries use it to standardize packaging quality, ensuring compliance with safety and hygiene requirements. The equipment is also suitable for publishing, ceramics, and refrigerated goods, where controlled packaging integrity is necessary. Enterprises handling high carton volumes daily will find the equipment indispensable for reducing manual workload, minimizing errors, and improving throughput.

Design and Compatibility of RUBBER Automatic Box Taper Machine

Automatic box taper machine features a robust design engineered for industrial use. The overall machine dimensions of L1780 × W886 × H1685mm make it compact enough to fit into most packaging lines without requiring excessive space. A 750mm high workbench ensures ergonomic handling during operation. The machine is compatible with adhesive tapes from 48mm to 60mm width, which are standard in packaging operations worldwide. The sealing system accommodates cartons of variable sizes within L300–700mm, W120–480mm, and H120–480mm. This flexibility allows enterprises to standardize packaging across multiple product lines with different carton sizes. Its steel frame and 180kg gross weight provide the necessary stability to ensure vibration-free operation in high-speed environments. The combination of durable frame, adjustable settings, and compatibility with global packaging materials ensures reliable integration into diverse industrial processes.

Performance and Capabilities of RUBBER Automatic Box Taper Machine

Automatic box taper machine delivers reliable performance for medium and high-volume carton sealing. With a sealing speed of 12 cases per minute, it significantly accelerates packaging output. Its side belt drive system ensures cartons remain stable during sealing, minimizing misalignment. The machine’s Taiwan Chengbang motor provides consistent power output, enabling continuous operation during extended production cycles. It supports adhesive tapes between 48 and 60mm width, ensuring compatibility with widely used carton sealing materials. The operational reliability reduces downtime and prevents disruptions in supply chain activities. Its power consumption of 370W ensures low operational cost, while its sealing mechanism maintains consistent tape application and adhesion strength. This results in reduced product loss and minimized transport damages, contributing to secure and professional packaging across sectors.

Safety and Durability of RUBBER Automatic Box Taper Machine

Automatic box taper machine includes integrated safety measures to protect operators and maintain long service life. The machine is equipped with safety instructions, requiring operators to stand at least 10cm from the equipment during operation. Operators are advised not to touch the sealing blades directly, preventing risk of injury. The equipment should not be flushed with water, as it is designed for dry operation environments. Built with a steel frame construction weighing 180kg, it ensures long-term durability under continuous use. Its safety mechanisms reduce operator risk, while its robust build minimizes wear and tear. The result is an extended service life and reduced frequency of replacements or repairs, ensuring cost efficiency in industrial environments.

Adjustments and Maintenance of RUBBER Automatic Box Taper Machine

Automatic box taper machine requires regular adjustments and maintenance to achieve optimal performance. Operators can easily adjust the machine for different carton dimensions using manual settings. Adhesive tape replacement is simple, requiring standard 48–60mm tapes. Preventive maintenance includes checking tape rollers, side belt drive system, and cassette blades for wear. Lubrication of moving parts ensures continuous and smooth operation. The machine’s robust design limits breakdowns, but regular inspections are essential for extending lifespan. Maintenance should also include cleaning dust and adhesive residue to avoid performance degradation. Replacement parts such as motors, belts, and blades are available to ensure uninterrupted production. Scheduled maintenance helps reduce unexpected downtime, ensuring reliable performance and maximizing return on investment for enterprises.

Buy RUBBER Automatic Box Taper Machine

Automatic box taper machine represents a professional packaging solution designed to meet the operational demands of enterprises and manufacturing facilities. Its combination of performance, safety, and durability ensures long-term value and reduced operational costs. This product allows businesses to optimize packaging processes, improve efficiency, and maintain standardized sealing quality across diverse carton dimensions. To purchase, companies can directly click ADD TO CART for immediate acquisition or request a personalized quotation by selecting GET OFFER. Both options ensure enterprises secure a reliable solution for packaging needs. The RUBBER automatic box taper machine delivers measurable benefits and provides a dependable tool for enhancing packaging operations and ensuring efficient supply chain processes.

The post RUBBER automatic box taper machine 48-60mm (Kraft or BOPP tape) – 12m/min – Max. Carton size: W500*H500mm – Min. Carton Size: W120*H120mm appeared first on ROBOMATIS®.

AUTOBOX10 automatic case erector is an advanced automatic case erector machine designed to streamline and automate the carton forming process in industrial packaging operations. It serves a critical role in modern production lines by accurately erecting cartons for packing, which enhances operational efficiency and minimizes manual labor requirements. This machine is engineered for industrial enterprises that require consistent, high-speed carton erection with minimal human intervention.

This automatic case erector features a robust servo-driven mechanism combined with pneumatic components to ensure precise carton handling and forming. The unit’s dimensions measure approximately 2020mm in length, 2080mm in width, and 1396mm in height, and it weighs about 600 kilograms. AUTOBOX10 supports carton sizes ranging from 200mm to 500mm in length, 200mm to 400mm in width, and 150mm to 350mm in height, with combined length plus width not exceeding 900mm and half the width plus height under 550mm. The machine operates at a speed of 10 to 15 cartons per minute, ensuring an optimal balance of throughput and accuracy. It employs either 50mm or 60mm tape width for carton sealing, with an optional 75mm tape available upon request. The table height is standardized at 650mm to align efficiently with most conveyor systems.

Engineered for reliability and precision, AUTOBOX10’s user interface incorporates a touchscreen control panel enabling streamlined automation workflows, including servo position teaching and carton specification setting. This feature facilitates quick changeovers and custom carton handling programs, suiting diverse packaging requirements. The automated resetting and servo return-to-zero functions ensure system precision before each operational cycle begins, preventing errors and reducing downtime.

Overall, AUTOBOX10 automatic case erector is designed to serve enterprises aiming for improved packaging accuracy, speed, and safety. The integration of advanced servo technology and pneumatic controls enables it to form cartons with consistent square or rectangular shapes, reducing product damage and enhancing package quality.

AUTOBOX10 automatic case erector video

Specifications of AUTOBOX10 automatic case erector

Features and Benefits of AUTOBOX10 automatic case erector

• SERVO motor-driven carton forming mechanism provides precise control over carton opening, enabling accurate and consistent erection of square or rectangular cartons.

• Pneumatic adjustments ensure smooth carton feeding, sealing, and ejection without deformation or damage.

• Integrated touchscreen control panel supports straightforward operation with automatic and manual modes, facilitating ease of use for operators and technicians.

• Servo position teaching function and carton specification setting enable fast adjustments for various carton sizes, supporting a wide range of packaging requirements and reducing changeover times.

• Pressure regulating solenoid valves and adjustable cylinder inlet/outlet air pressure enhance control of carton molding force and speed for processing stability with different carton material thicknesses.

• Automatic power cutoff protocols during servicing and emergency stops improve operator safety in case of entrapment.

• Compact machine dimensions and modular design allow easy integration into existing packaging lines.

• Overall, these features improve packaging accuracy, reduce material wastage, lower labor costs, and contribute to safer working environments, making AUTOBOX10 a valuable solution for medium to large-scale packaging operations.

ROI and Process Efficiency of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector significantly contributes to the return on investment for industrial packaging operations by reducing manual labor costs and increasing packaging speed and consistency. The machine’s automatic carton erecting process minimizes human error, resulting in fewer damaged cartons and reduced material waste. By producing up to 15 cartons per minute, AUTOBOX10 accelerates throughput rates on packaging lines, enabling businesses to meet higher production targets.

Moreover, the precise servo-driven mechanism ensures repeatable and accurate carton forming, which diminishes downtime caused by misaligned or improperly formed cartons. This consistent operation leads to better synchronization with upstream and downstream processes, optimizing whole-line efficiency. Enterprises benefit from reduced training requirements due to the user-friendly touchscreen interface and simplified operational setups.

The automated control of carton size calibration and servo position teaching reduces changeover time between different carton sizes, further enhancing operational flexibility and productivity. Equipment downtime for maintenance and adjustments is minimized due to the integrated monitoring and pressure regulation systems. Thus, AUTOBOX10 enables faster payback through operational cost savings, improved quality, and elevated packaging output.

How to Use AUTOBOX10 automatic case erector

1. Connect the AUTOBOX10 machine to a stable power supply and compressed air source.

2. Ensure the power supply is switched off before performing any machine adjustments to maintain safety.

3. Begin operation by performing the automatic servo return-to-zero function to reset the system to its origin positions, preventing startup errors.

4. Select the carton size number according to the cartons to be processed; the system can store up to ten carton size specifications.

5. Use the touchscreen interface to teach the servo positions for the conveying center point and carton pickup point for precise suction cup alignment.

6. Switch the machine to automatic mode on the touchscreen to initiate the full cycle: picking an unformed carton, folding front and rear flaps, folding side flaps, pushing the carton onto the conveyor, and resetting for the next cycle.

7. Utilize manual debugging modes for step-by-step operation during troubleshooting or operator training.

8. Monitor the unpacked carton count displayed on the screen and reset it as needed for continuous production without interruption.

9. Observe all safety precautions consistently; mechanical or pneumatic adjustments must be performed by qualified personnel only.

10. Regularly calibrate suction cups, molding positioning rods, and carton guides to ensure optimal machine performance and consistent carton handling.

Applications and Competitive Advantages of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector is designed for diverse industrial sectors requiring automated carton erecting solutions, including food and beverage, pharmaceuticals, electronics, consumer goods, and agricultural packaging. Enterprises seeking to optimize packaging line speeds and improve packaging uniformity will find this equipment suitable for mid-to-high volume operations.

Compared to competitors, AUTOBOX10 stands out due to its combination of servo motor precision and pneumatic flexibility, enabling it to handle a wider range of carton sizes with high repeatability. The touchscreen interface with position teaching capabilities is user-oriented, offering simplified setup and fast transitions between carton specifications.

Its mechanical design mitigates common issues like carton deformation and jamming, frequently encountered in less advanced models. Pressure regulating systems and air speed controls ensure that the carton forming process adapts to different material thicknesses and box characteristics. These features yield higher uptime and lower maintenance intervals.

Moreover, the modular construction allows clients to request custom tape widths (50mm, 60mm, or optional 75mm), enhancing integration into bespoke packaging workflows. Enterprise buyers benefit from the combination of robust build quality, safety considerations, and ease of integration, positioning AUTOBOX10 as a competitive solution within its market segment.

Design, Adjustments and Maintenance of AUTOBOX10 automatic case erector

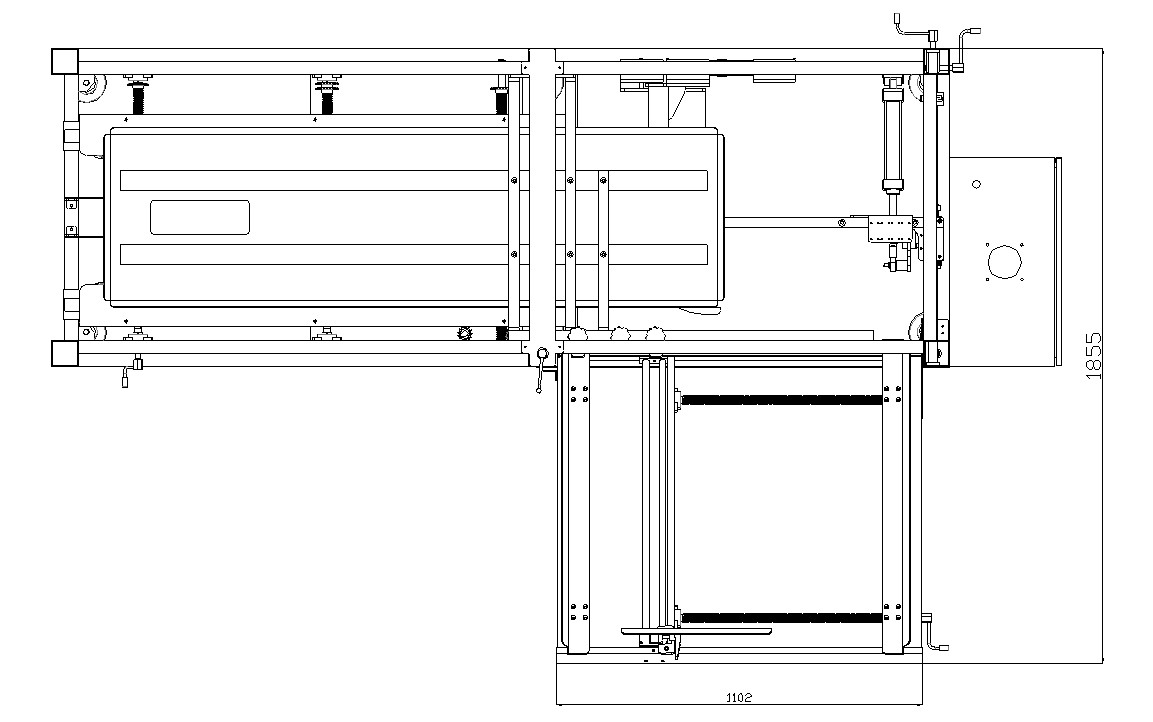

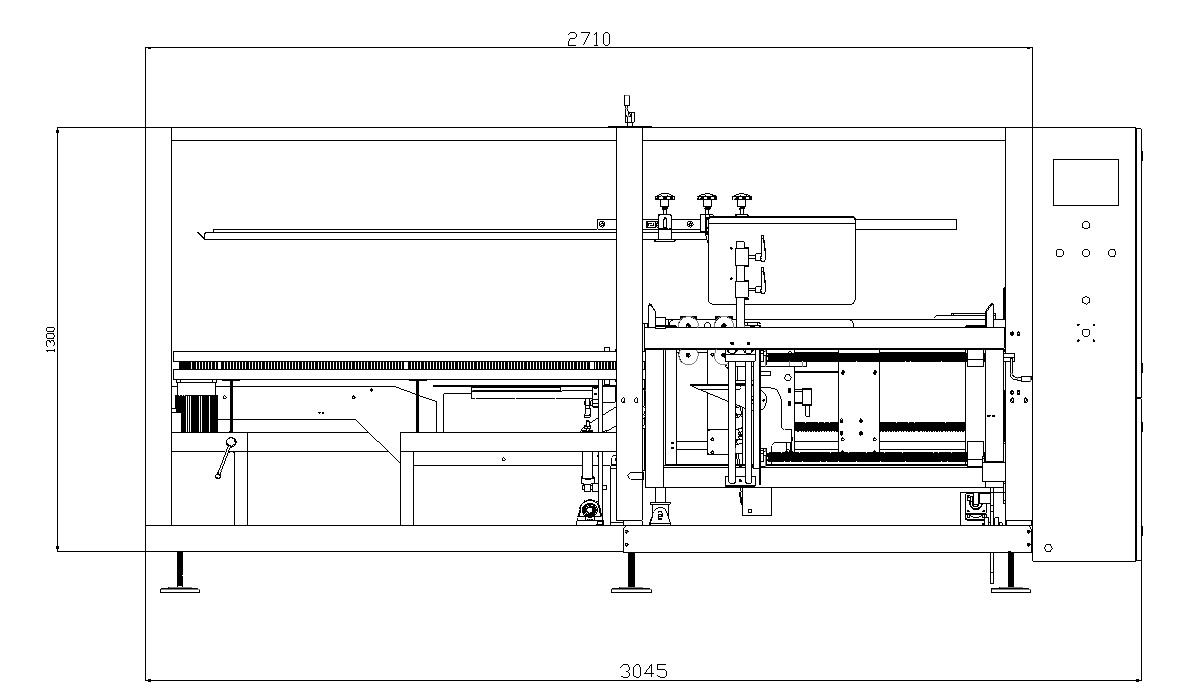

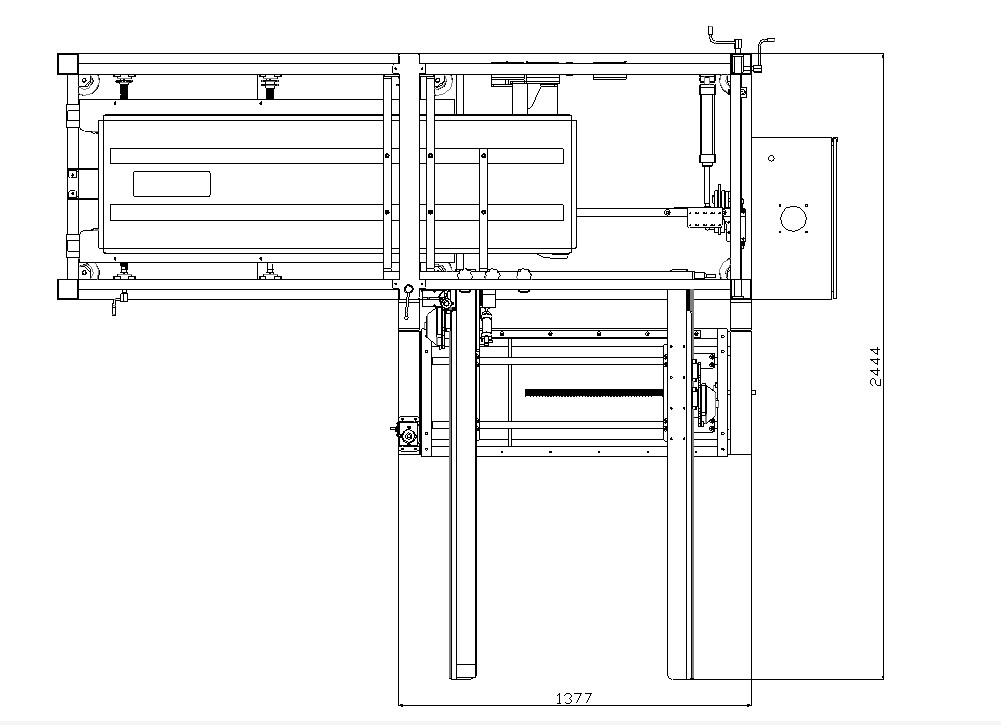

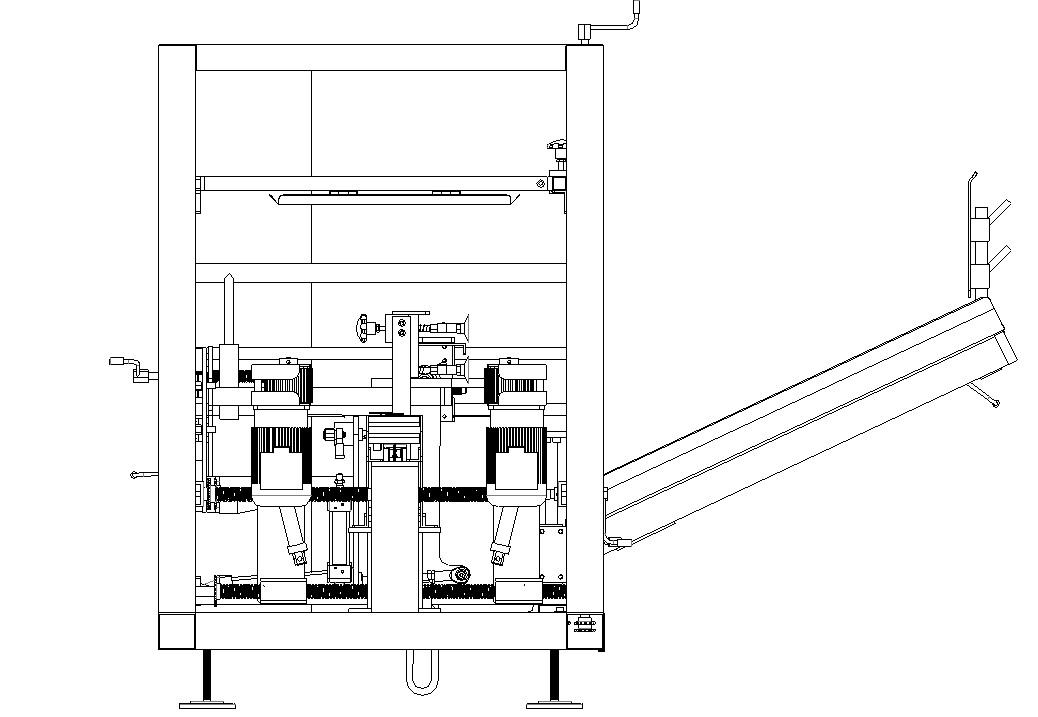

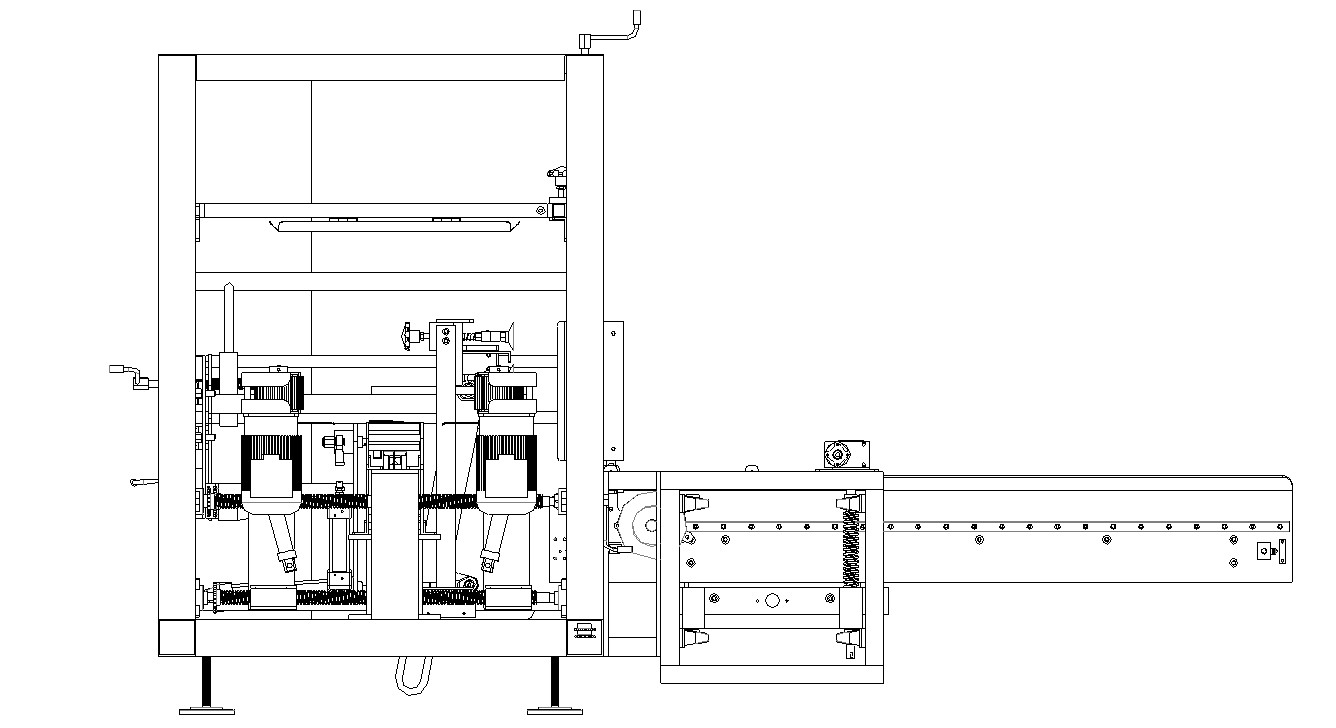

AUTOBOX10 automatic case erector features a compact footprint measuring just over two meters in length and width, with a height of approximately 1.4 meters, facilitating straightforward installation within existing packaging lines. The ergonomic table height of 650mm aligns with most conveyors, simplifying product transfer.

Adjustments on the machine include belt width control, carton carrier width, bracket height, pressure box guide plate height, molding positioning rods, suction cups, and carton push rods. These mechanical settings are designed for fine-tuning to accommodate various carton dimensions and material characteristics. Non-professional personnel are advised against adjusting pneumatic regulating valves or solenoid valve pressures to maintain system integrity.

Maintenance involves routine cleaning, lubrication of moving parts, verifying pneumatic pressure levels, and inspection of suction cups and belts for wear. The machine design incorporates ease of access for servicing, and the operator manual provides comprehensive guidance on adjustment sequences and safety procedures.

Scheduled maintenance reduces unplanned downtime and maintains product quality by ensuring the machine operates within optimal parameters. Moreover, the touchscreen control system supports troubleshooting through manual debugging modes, assisting technicians in diagnosing issues quickly.

Performance and Capabilities of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector operates at a consistent rate of 10 to 15 cartons per minute, balancing speed with reliability. The servo-driven forming mechanism controls carton pickup, flap folding, and ejection with high precision, minimizing deformation and damage. Pneumatic actuators regulate carton feeding and positioning, adapting to carton thickness and ensuring smooth operation.

The machine accommodates cartons ranging from small to moderately large sizes, with adjustable guides and suction cup positioning to ensure a secure grip on the widest carton flaps. The pressure regulating solenoid valve maintains constant air pressure (~0.5 mpa), crucial for stable molding and suction operations.

Speed and pressure of cylinder movements are adjustable via dedicated knobs, providing operational flexibility and suitability for different packaging materials. The system’s servo position teaching function automates width adjustments, accelerating changeovers and maintaining cycle consistency.

AUTOBOX10’s performance is geared toward enterprise-scale packaging, providing a reliable solution that minimizes interruptions while maintaining high throughput and carton integrity.

Safety and Durability of AUTOBOX10 automatic case erector

Operator safety is a priority in the design of AUTOBOX10 automatic case erector. The machine includes protocols to immediately shut off power if any human body part becomes entangled in moving parts such as the conveyor belt. Power must be turned off before servicing mechanical components to prevent accidents.

The equipment’s controls prevent automatic operation unless both cylinder and servo origin lights confirm correct system reset, avoiding accidental startups. Emergency stop functions are integrated into control interfaces.

Durability is ensured through the use of industrial-grade materials for mechanical parts and wear components including belts, suction cups, and pressure plates. The machine is built to operate continuously in typical industrial environments, with resistance to operational stresses.

Authorized servicing and adherence to operator manuals are necessary to maintain warranty and product longevity. Unauthorized modifications are not supported and may compromise machine safety.

Environmental Impact of AUTOBOX10 automatic case erector

AUTOBOX10 automatic case erector supports sustainability objectives through reducing packing material waste by forming cartons accurately and consistently. This precision reduces the rate of carton rejection and product damage, contributing to less packaging material consumption.

By automating the carton erection process, the equipment also reduces human error and energy waste associated with inefficient manual packing. The pneumatic systems are designed for regulated air pressure to optimize energy use.

The machine’s modular design allows for easy disassembly and recycling of parts at end of life. Enterprises can integrate AUTOBOX10 into broader packaging systems focused on minimizing environmental footprint.

Buy AUTOBOX10 automatic case erector

The AUTOBOX10 automatic case erector represents an investment in efficient, reliable, and safe carton forming technology tailored for industrial packaging operations. With advanced servo control, precise pneumatic adjustments, and user-friendly touchscreen interfaces, AUTOBOX10 offers superior performance that enhances productivity and packaging quality.

To acquire this solution and elevate your packaging line capabilities, customers are invited to add AUTOBOX10 automatic case erector to their cart or request a personalized offer. Our team is prepared to assist with configuration details to match your operational requirements and ensure seamless integration.

Investing in AUTOBOX10 automatic case erector delivers measurable return on investment through labor savings, increased throughput, and reduced material waste — a strategic asset for forward-looking enterprises.

The post AUTOBOX10 automatic case erector – 10-15 cases/min appeared first on ROBOMATIS®.

AUTO&FOLD-5050 is a fully automatic carton sealing machine engineered for end-of-line packaging operations requiring consistent, high-quality flap folding and simultaneous top-and-bottom taping of corrugated cartons. Designed for uniform-sized cartons with dimensions ranging from 200–600 × 150–500 × 150–500 mm (L×W×H), this industrial-grade box taper integrates pneumatic folding, dual tape heads with synchronized upper and lower application, and driven side belts to efficiently fold flaps in a pre-set sequence (front, back, then side) and securely seal cartons with standardized adhesive overlap and clean cutting.

The machine operates with a fixed belt speed of 18 m/min to ensure consistent throughput, powered by a supply of 220 V, 50–60 Hz with approximately 200 W consumption. It supports tape widths of 36 mm, 48 mm, and 60 mm compatible with OPP/BOPP tapes, while pneumatic functions require compressed air at 6 kg/cm² and roughly 100 NL/min flow for precise folding and sealing operations.

This box taper can function as a stand-alone sealer or seamlessly integrates into automated packaging lines downstream of case erectors and upstream of print-and-apply, inspection, or weighing stations. With a compact footprint measuring 1780 × 1080 × 1400 mm and an adjustable working table height from 600 to 850 mm, it aligns perfectly with typical conveyor setups in high-throughput, multi-shift packaging plants, ensuring efficient workflow and ease of maintenance. The machine’s approximate weight is 280 kg, providing stability during fast operation cycles.

AUTO&FOLD-5050 automatic box taper machine video

Key Technical Specifications of AUTO&FOLD-5050 automatic box taper machine

• Carton Size (L×W×H): 200–600 × 150–500 × 150–500 mm

• Working Table Height: Adjustable from 600 to 850 mm

• Belt Speed: Fixed at 18 m/min for consistent throughput

• Tape Widths Supported: 36 mm, 48 mm, and 60 mm (OPP/BOPP tapes)

• Power Supply: 220 V, 50–60 Hz

• Power Consumption: Approx. 200 W

• Compressed Air: 6 kg/cm², ~100 NL/min required for folding and sealing functions

• Machine Footprint (L×W×H): 1780 × 1080 × 1400 mm

• Machine Weight: Approx. 280 kg

• Tape Heads: Upper and lower synchronization for precise sealing

Features & Benefits of AUTO&FOLD-5050 automatic box taper machine

• Fully Automatic Flap Folding & Sealing: Automatically folds front, back, and side flaps in sequence using pneumatic cylinders and folding poles, improving box stability and reducing manual labor.

• Dual Tape Heads: Simultaneous top and bottom tape application ensures strong and neat sealing with uniform adhesive overlap, adjustable for front and rear flaps to optimize tape usage and appearance.

• Adjustable Parameters: Operators can easily adjust working height, sealing width and height, folding pole angles, tape tension, and overlap lengths to accommodate varying carton sizes and tape materials.

• Simple Tape Installation & Path: Designed for OPP/BOPP tapes, the tape path maintains adhesive side outward, with guided rollers and adjustable tension springs preventing wrinkles, side roll, and overlapping errors.

• Robust Construction: Heavy-duty welded frame with lifting cylinders and electronic controls built for long-term industrial use with minimal maintenance.

• Integrated Safety Features: Equipped with micro switches to control flap folding timing and ensure carton positioning; recommended lockout and maintenance procedures protect operators.

• Easy Line Integration: Compact and configurable, the AUTO&FOLD-5050 fits well between standard case erectors and downstream labeling or inspection equipment.

Specifications of Automatic Box Taper Machine — AUTO&FOLD-5050

Where to use automatic box taper machine

Ideal for packaging uniform corrugated cartons in industries including food & beverage, electronics, pharmaceuticals, and general manufacturing, where consistent flap folding and sealing quality are crucial to maintain packaging integrity, reduce rework, and improve throughput.

It’s especially suitable in operations with many different box formats across a shift where operators don’t want to (or can’t safely) hold the upper flaps while approaching the sealer—the machine performs automatic top-flap closing and then seals, saving operator time and reducing ergonomic strain. Fast, tool-free handwheel adjustments allow quick changeovers within the specified carton range when switching SKUs.

Typical use cases:

• Manual pack cells upstream of the sealer where freeing the operator’s hands speeds loading and line balance.

• E-commerce, 3PL, and contract packing lines with frequent SKU changes but uniform runs per batch.

• Tall or spring-back cartons where flap control is difficult and slows manual closing.

• Multi-shift plants aiming to standardize closure quality, improve safety (hands away from blades), and keep takt times predictable.

Note: For truly random-size flows (cartons of varying width/height arriving without adjustment), consider a random-size auto-adjusting variant; the AUTO&FOLD-5050 is optimized for uniform runs with quick changeovers between them.

Why Choose AUTO&FOLD-5050 automatic box taper machine?

• Efficiency: Reduces manual labor and speeds up packaging throughput with consistent flap folding and tape sealing.

• Quality: Ensures uniform closure with adjustable overlap lengths and compression, minimizing tape waste and rework.

• Flexibility: Accommodates a range of carton sizes and multiple tape widths with easy mechanical adjustments.

• Reliability: Durable design combined with straightforward maintenance routines supports sustained high-volume production.

• Safety: Engineered with micro-switch controls and safe maintenance procedures to protect operators and maintain uptime.

How automatic box taper machine Works

The AUTO&FOLD-5050 operates by automatically feeding an erected carton with open top flaps onto its conveyor belt, where driven side belts securely hold the box in position. The process begins when the carton activates a start micro-switch, triggering the upper assembly to lower and initiate the flap-folding sequence. The machine folds the front flap first, followed by the back flap, and finally the side flaps using pneumatic cylinders and folding poles, ensuring uniform and stable closure before tape application. Simultaneously, synchronized upper and lower tape heads apply OPP tape to both top and bottom seams, maintaining consistent overlap and clean cutting thanks to adjustable blade supports and tension springs. Throughout this process, pneumatic pressure regulators and mechanical adjustments allow fine-tuning for different carton sizes and tape types, delivering efficient, repeatable sealing with minimal operator intervention.

Who Should Use AUTO&FOLD-5050 automatic box taper machine

The AUTO&FOLD-5050 is ideal for manufacturers, packers, and logistics operators seeking to automate and standardize their carton sealing process. It is particularly suited for production environments handling uniform corrugated cartons where throughput, seal quality, and labor savings are priorities. Packaging facilities operating multi-shift lines will benefit from its low maintenance demands and consistent performance, while quality-driven businesses that require neat, reliable, and reproducible box closures will appreciate its precision flap folding and tape application. This machine is also beneficial for companies aiming to reduce ergonomic injuries associated with manual folding and taping and for packing lines integrating automated case erectors and downstream inspection or labeling equipment.

What types of cartons can this machine handle?

The AUTO&FOLD-5050 is designed to handle standard corrugated cardboard cartons within a size range of approximately 200–600 mm in length, 150–500 mm in width, and 150–500 mm in height. The machine performs best with uniform, dry, non-coated cartons that have clean surfaces free from dust, ash, or debris. It is not suitable for use with cartons that have plastic film coatings, as the adhesive tape cannot properly seal on such surfaces. Additionally, cartons that are wet, deformed, or structurally compromised should be avoided, as they pose risks such as improper sealing, potential jams, or safety hazards due to sharp edges caused by glitches. Ensuring carton quality consistent with these guidelines helps maintain sealing integrity, reduces errors, and prolongs machine life. Operators are advised to inspect cartons prior to use to ensure compliance with these restrictions for optimal performance and safety.

What types and sizes of tapes are compatible?

The AUTO&FOLD-5050 supports OPP (Oriented Polypropylene) and BOPP (Biaxially Oriented Polypropylene) industrial tapes commonly used for carton sealing. Tape widths of 36 mm, 48 mm, and 60 mm are compatible, accommodating different packaging needs and tape consumption preferences. The machine’s tape path is designed so that the adhesive side is always oriented outward during feeding and application. Tape is loaded by mounting the roll on the tape holder, routing it through idle pulleys, one-way rollers, and a conductor pulley before passing over the tape support. This ensures tension is evenly maintained to prevent side rolling or wrinkling. Operators can adjust tape overlap length independently on the front and back carton flaps by loosening and moving the blade support and limit block, tailoring the seal to the material and carton specifications. The main spring tension can also be adjusted to accommodate different tape thicknesses, such as increasing tension for tougher kraft tapes. Proper adjustment ensures clean cuts and consistent tape application with minimal waste.

How fast does AUTO&FOLD-5050 automatic box taper machine operate?

The AUTO&FOLD-5050 operates with a fixed conveyor belt speed of 18 meters per minute, supporting high-throughput packaging operations. Depending on carton size, spacing, and line integration, this translates to a predictable cartons-per-minute throughput suitable for many mid-sized packaging lines. Optimal speed is achieved when running uniform-sized cartons and with a leveled infeed conveyor to prevent disruptions. Variations in carton size or irregular spacing can reduce throughput due to longer adjustment or positioning times. The machine’s compact footprint and automated flap-folding and sealing sequence allow synchronized operation with upstream case erectors and downstream labelers or checkweighers, enabling controlled takt times aligned with packaging line objectives. Operators are encouraged to maintain uniform carton dimensions and proper line alignment to maximize speed and minimize stoppages.

Operation & Maintenance

• User-Friendly Operation: Start the machine via an ON button. Cartons feed through driven belts triggering micro-switches that initiate flap folding and tape application automatically.

• Preventive Maintenance: Includes daily cleaning, routine checks on compressed air filters/oil-water separator, and periodic lubrication of chains and screw rods to sustain optimal performance.

• Blade and Roller Care: Blades are replaceable and adjustable for clean cuts; rollers and tape supports must be kept smooth and tensioned to avoid tape defects.

• Safety Precautions: Operators must never reach into the machine while running; power and compressed air must be isolated before tape installation or repairs; only trained personnel should perform maintenance.

What are the power and air requirements?

The AUTO&FOLD-5050 requires a standard power supply of 220 V at 50–60 Hz, with an approximate electrical load of 200 W, making it compatible with common industrial electrical infrastructure. For its pneumatic functions, compressed air is needed at around 6 kg/cm² (approximately 85 psi) with a flow rate near 100 NL/min (normal liters per minute). The pneumatic supply powers the folding cylinders and tape applicators, ensuring consistent flap manipulation and tape tensioning. Operators must ensure stable electricity and air supply to avoid slowdowns or interruptions during operation. Proper maintenance of the air-water separator in the pneumatic system is critical to prevent moisture or impurities from damaging pneumatic components. The footprint and working height adjustability allow the machine to fit into existing utility setups with minimal modifications.

How does the automatic carton sealer integrate into existing packaging lines?

The AUTO&FOLD-5050 is designed for straightforward integration into continuous packaging lines. It accepts cartons from an infeed conveyor at an adjustable table height between 600 and 850 mm, aligning with most standard line elevations. Cartons advance on driven side belts that grip and stabilize them during flap folding and sealing. The machine’s output passes directly onto downstream stations such as print-and-apply labelers, barcode verifiers, or checkweighers. Its footprint (1780 × 1080 × 1400 mm) is compact enough for tight production spaces. To ensure smooth integration, upstream carton erectors should feed uniformly squared cartons, and downstream equipment should have adequate buffering to avoid back pressure on the taper machine. Pressure regulators control pneumatic operations and folding pole angles, which can be adjusted according to specific carton widths, ensuring dimensional compatibility. The machine delivers repeatable, standardized closures helping streamline packaging cell operations.

What adjustments are available for different carton sizes and tape applications?

The AUTO&FOLD-5050 offers a range of adjustable parameters to adapt to various carton sizes and tape types. Machine height can be changed by loosening the tripod screws and extending or retracting the adjustable foot poles to fit conveyor heights. Sealing width and height are controlled pneumatically via cylinder pressure regulators to prevent carton damage while ensuring firm flap closure. The sealing length is adjustable by repositioning the downward micro-switch along a slotted mount, which affects flap folding timing and tape application length. Folding pole angles can be set independently to match carton widths, ensuring full flap contact. Tape overlap can be fine-tuned on the front and back by adjusting the blade support and limit block screws, allowing precise control over tape usage and seal integrity. Tension on the main spring can be adjusted to accommodate different tape thicknesses, ensuring proper blade speed and cut quality. These features enable quick changeovers with minimal downtime.

What safety features are included?

Safety in the AUTO&FOLD-5050 is ensured through several design and operational features. The machine incorporates multiple micro-switches to guarantee that cartons are correctly positioned before flap folding and tape application occur, preventing jams and misfeeds. Operators must adhere to recommended lockout/tagout procedures during maintenance, including turning off electrical power and venting pneumatic air supplies before tape installation, blade replacement, or cleaning. The operating manual explicitly warns against reaching into the flap folding area while the machine is running, reducing injury risk. Non-professionals are strictly prohibited from interacting with the machine internals. The robust welded frame and guarding minimize accidental access to moving parts during operation. Proper training for operators is essential to safely manage adjustments and repairs. These measures contribute to sustained uptime and operator safety.

How does this machine improve productivity and reduce labor costs?

By automating the flap folding and bottom/top sealing processes, the AUTO&FOLD-5050 significantly reduces the manual labor required for carton closure, freeing operators to focus on other tasks such as quality checks and changeovers. The machine delivers consistent, repeatable flap alignment and tape application, improving first-pass yield and minimizing rework caused by improper sealing or tape waste. Adjustable parameters reduce tape consumption variability across shifts, further lowering material costs. Automation also mitigates ergonomic strain associated with repetitive manual folding and taping, enhancing workplace safety and productivity. The machine’s predictable throughput supports line balancing and takt time planning, optimizing staffing and downstream operations. Overall, it delivers faster, more standardized packaging cycles with less operator fatigue.

Advantages of Automatic Box Taper Machine

Automatic box taper machine AUTO&FOLD-5050 automatic box taper machine accepts an erected carton with open top flaps, grips it with driven side belts, and triggers the sequence via a start micro-switch before lowering the upper assembly to initiate controlled folding. Automatic box taper machine closes the front flap, then the rear flap, and finally the side flaps to stabilize lid geometry prior to tape application, reducing edge skew and cut errors. Automatic box taper machine allows operators to set side, lift, and folding air pressures; align folding poles symmetrically to the carton width; and adjust sealing length by repositioning the downward micro-switch along its slotted mount. Automatic box taper machine specifies a defined tape path over idle, one-way, and conductor pulleys so the adhesive face remains outward and tension remains uniform at the application roller during cutting. Automatic box taper machine thereby maintains a simple, repeatable workflow that supports quick changeovers and limited supervisory oversight in uniform-size operations.

Automatic Box Taper Machine Price

Price of the AUTO&FOLD-5050 Automatic Box Taper Machine reflects its industrial-grade construction, reliable performance, and advanced features for fully automatic flap folding and bottom sealing. By automating labor-intensive processes, the machine offers a rapid return on investment through labor cost savings, reduced tape waste, and improved packaging quality that minimizes rework and product damage. Pricing may vary based on options such as tape width configurations, additional spare parts kits, or customized adjustments for integration with specific packaging lines. For detailed pricing, including volume discounts or package deals that include installation, training, and maintenance support, customers should contact sales representatives directly. Transparent pricing and flexible financing options make the AUTO&FOLD-5050 accessible to a broad range of packaging operations seeking to enhance throughput and consistency.

Buy AUTO&FOLD-5050 Automatic Box Taper Machine

Purchasing the AUTO&FOLD-5050 Automatic Box Taper Machine is straightforward and designed for both single-unit buyers and large-scale deployments across multiple packaging lines. Customers can order standard configurations through an easy online process or request customized solutions tailored to their production requirements. The machine ships ready for integration with detailed instructions and access to technical support for smooth installation and commissioning. Buying the AUTO&FOLD-5050 ensures access to dedicated customer service, warranty coverage, and availability of replacement parts to maintain uptime. Whether upgrading existing manual operations or expanding automated packaging capacity, the AUTO&FOLD-5050 offers a durable, efficient, and cost-effective solution to improve carton sealing reliability and factory productivity. Automatic box taper machine procurement can proceed directly via ADD TO CART for standard configurations or via GET OFFER to align carton window, tape width, spare-parts kit, and service terms with corporate standards for commissioning and multi-site deployment.

The post AUTO&FOLD-5050 automatic box taper machine Kraft/BOPP – Auto height & width adjustment + top-flap closure appeared first on ROBOMATIS®.

Aparat automat de făcut cutii de carton AUTOBOX este o mașină de ambalare foarte eficientă, concepută pentru a ajuta producătorii să își îmbunătățească procesele de ambalare. Cu o viteză de lucru de până la 16 cutii pe minut, mașina poate asambla și sigila cutii rapid și cu precizie, ceea ce poate contribui la reducerea costurilor forței de muncă și la îmbunătățirea productivității.

Una dintre caracteristicile cheie ale mașinii automate de făcut cutii AUTOBOX este capacitatea sa de a lucra atât cu bandă Bopp, cât și cu bandă de hârtie. Acest lucru o face o opțiune versatilă pentru întreprinderile care trebuie să lucreze cu diferite tipuri de bandă sau care doresc să aibă flexibilitatea de a trece de la una la alta în funcție de nevoile lor.

Mașina este, de asemenea, extrem de personalizabilă și poate fi făcută la comandă pentru a se acomoda la diferite dimensiuni de carton (timpul de așteptare pentru o mașină personalizată este de aproximativ 12 săptămâni). Mașina automată standard de făcut cutii AUTOBOX poate prelucra cutii de carton cu dimensiunile L 250-530mm x W 150-400mm, x H 225-600mm (după plierea și sigilarea clapei inferioare). De asemenea, putem ajusta mașina pentru a lucra cu bandă de 60 sau 72 mm, ceea ce poate fi util pentru întreprinderile care au cerințe specifice în materie de bandă.

Mașina automată de făcut cutii AUTOBOX poate fi livrată cu o masă de lucru înclinată sau orizontală. Masa de lucru înclinată poate depozita aproximativ 80 de cutii, în timp ce masa de lucru orizontală poate depozita până la 150 de cutii. Numărul de cutii care pot fi depozitate este determinat de grosimea cartonului.

Mașina este alimentată de o tensiune de 1P 220V 50/60 HZ 400W și necesită o alimentare cu aer de 6Kgf/cm2. Sursa de alimentare de protecție este IP54, ceea ce ajută la asigurarea faptului că mașina este sigur de utilizat într-o varietate de medii diferite. Mașina automată de făcut cutii funcționează la un nivel de zgomot de 75 DB, ceea ce ajută la reducerea poluării fonice în mediul de lucru.

Pentru a se asigura că mașina este de înaltă calitate și fiabilă, mașina de făcut cutii AUTOBOX utilizează componente electrice și pneumatice de la mărci de încredere precum Siemens, Schneider, Delta, P + F, Airtac și SMC. Acest lucru ajută la asigurarea faptului că mașina este durabilă și de lungă durată și că va funcționa în mod eficient în decursul anilor.

În general, mașina automată de făcut cutii AUTOBOX este o alegere excelentă pentru întreprinderile care au nevoie de asamblarea și sigilarea rapidă și eficientă a cutiilor de carton ondulat. Datorită caracteristicilor sale personalizabile, designului ușor de utilizat și componentelor de înaltă calitate, aparat automat de făcut cutii de carton AUTOBOX este o opțiune fiabilă și eficientă care poate ajuta întreprinderile să își îmbunătățească procesele de ambalare și să reducă costurile.

Video despre aparat de făcut cutii de carton

Avantajele aparatului automat de făcut cutii de carton AUTOBOX

• Abilitatea de a lucra atât cu banda Bopp, cât și cu banda de hârtie de tipar
• Poate prelucra cutii de carton cu dimensiunile L 250-530 mm x W 150-400 mm, x H 225-600 mm (după plierea și sigilarea clapei inferioare)
• Masa de lucru orizontală poate depozita până la 150 de cutii cu dublu carton ondulat
• Mașina este alimentată de o tensiune de 1P 220V 50/60 HZ 400W și necesită o alimentare cu aer de 6Kgf/cm2
• Alimentare de protecție IP54
• Nivel de zgomot de 75 DB, care ajută la reducerea poluării fonice în mediul de lucru
• Componente de înaltă calitate de la mărci de încredere precum Siemens, Schneider, Delta, P + F, Airtac și SMC
• Îmbunătățirea proceselor de ambalare și reducerea costurilor

Specificații ale aparatului automat de făcut cutii de carton AUTOBOX

Aparatul de făcut cutii AUTOBOX este o mașină versatilă care poate lucra cu bandă Bopp sau bandă de hârtie de 48 mm și poate fi personalizat pentru a lucra cu bandă de 60 mm sau 72 mm. Are o viteză de lucru reglabilă de 0-16 cutii pe minut (în funcție de dimensiunea cutiei de carton) și poate prelucra cutii de carton cu dimensiuni de L 250-530 mm x W 150-400 mm x H 225-600 mm (după plierea și sigilarea clapei inferioare a cutiei) sau H 150-400 mm (după plierea și sigilarea atât a clapei superioare, cât și a celei inferioare a cutiei). Aparatul de făcut cutii de carton AUTOBOX este prevăzut cu o masă de lucru orizontală (care poate depozita aproximativ 150 de cutii cu dublu carton ondulat) sau cu o masă de lucru înclinată (care poate depozita aproximativ 80 de cutii cu dublu carton ondulat). Aparatul cântărește G.W. 1000 kg sau N.W. 950 kg și are o sursă de alimentare de protecție IP54. Aparatul de făcut cutii AUTOBOX este alimentat de o tensiune de 1P 220V 50/60 HZ 400W și necesită o alimentare cu aer de 6Kgf/cm2. Aparatul automat de făcut cutii de carton poate fi personalizat pentru a se adapta la diferite dimensiuni de cutii de carton și utilizează componente electrice și pneumatice de înaltă calitate de la mărci de reputație precum Siemens, Schneider, Delta, P + F, Airtac și SMC.

Desen a dimensiunii cartonului compatibil cu aparatul de făcut cutii de carton AUTOBOX (ca referință):

Desenul de aspect al aparatului de făcut cutii de carton AUTOBOX cu masă de lucru orizontală:

Desenul de aspect al aparatului de făcut cutii de carton AUTOBOX cu masă de lucru înclinată:

Direcția cartonului și direcția aparatului AUTOBOX

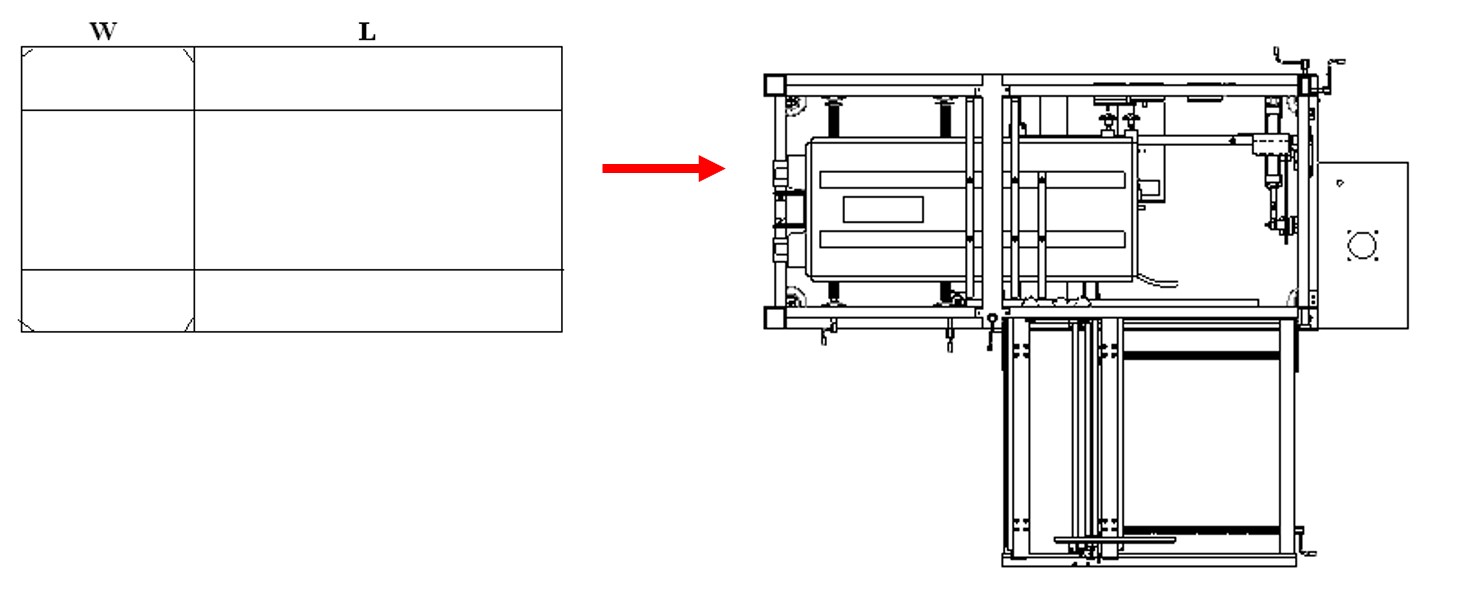

A. Introducerea pe partea dreaptă și ieșirea pe partea stângă (standard aparatul de făcut cutii AUTOBOX)

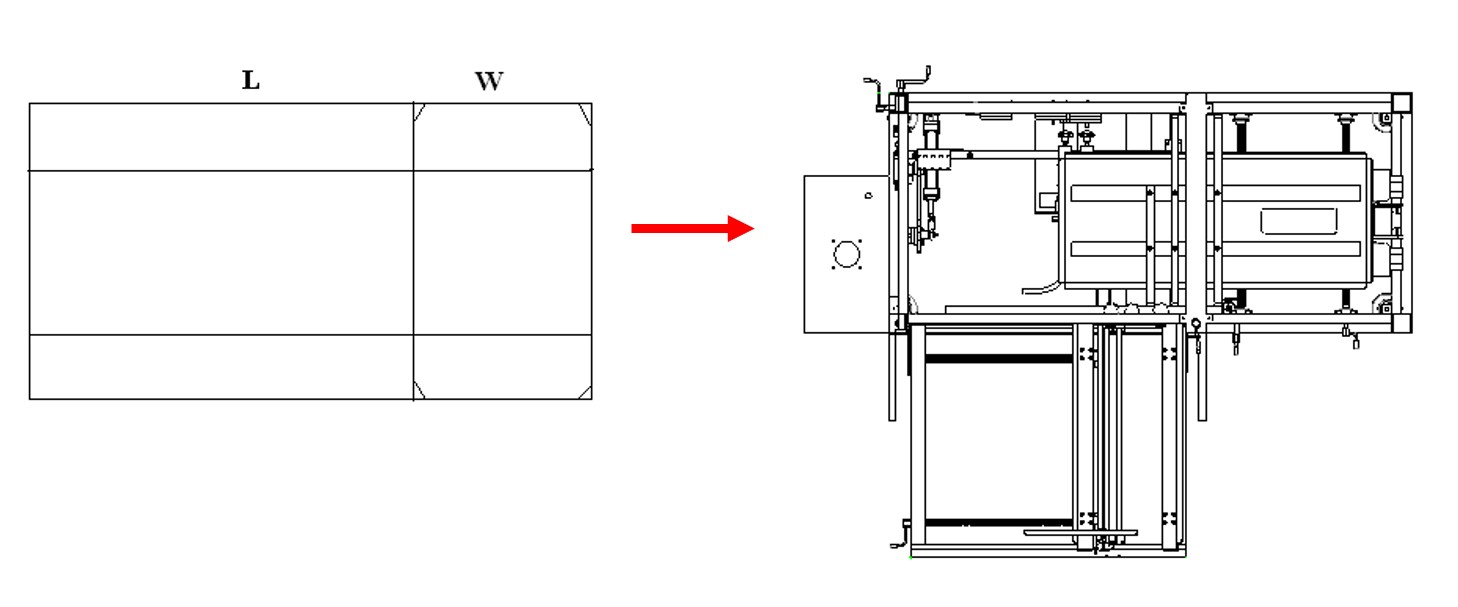

B. Introducerea pe partea stângă și ieșirea pe partea dreaptă (aparat de făcut cutii AUTOBOX – personalizat)

Procesul de lucru al aparatului de făcut cutii de carton AUTOBOX

1. Reglați parametrii aparatului în funcție de dimensiunea cartonului
2. Puneți cartonul de hârtie pe cadrul mașinii
3. Introduceți cartonul în mașină -> Pliați clapele din față și din spate -> Pliați clapele din stânga și din dreapta -> Sigilați partea de jos cu bandă adezivă.

Caracteristici ale aparatului automat de făcut cutii de carton AUTOBOX

Aparat automat de făcut cutii de carton AUTOBOX este utilizat pentru a forma automat cutii de carton și pentru a sigila capacul de jos al cutiei cu bandă BOPP sau hârtie milimetrică.

Aparatul trage cutiile neasamblate în interiorul mașinii, le asamblează și sigilează partea de jos a cutiei. Cutia nou formată este sigilată în partea de jos cu bandă adezivă.

Această mașină are multe opțiuni, inclusiv aparate de uz casnic, filare, produse alimentare, mărfuri generale, medicină, industria chimică, ceramică, industria sobelor și așa mai departe.

The post Aparat automat de făcut cutii de carton AUTOBOX – 16 cutii/min – Simens PLC appeared first on ROBOMATIS®.

Mașina automată de sigilat cutii de carton AUTO-TAPE, detectează automat înălțimea și lățimea pachetelor și poate închide cutii de diferite dimensiuni fără a ajusta mașina. Mașină automată de sigilat cutii de carton AUTO-TAPE se folosește în principal în companii care nu știu de la început ce dimensiuni vor avea cutiile care trebuie sigilate. Aceasta este o practică obișnuită în companiile de preluare a comenzilor, cum ar fi magazinele online, sau în producție. Mașina automată de sigilat cutii de carton AUTO-TAPE este potrivită pentru companiile care vor să își sigileze cutiile în poziție centrală.

Fie că doriți să vă modernizați linia curentă de ambalare cutii, să vă înlocuiți vechea mașină sau doriți să vă înlocuiți operatorul manual de sigilare cu o mașină automată de sigilat economică, mașina automată de sigilat cutii de carton AUTO-TAPE este alegerea potrivită pentru dumneavoastră. Mașina automată de sigilat cutii de carton este folosită în principal pentru a sigila și împacheta cutii de carton și poate fi folosită fie independent, fie ca o parte integrantă a liniei de producție. Mașina este utilizată la scară largă în domeniul electric, domestic, textilelor, alimentar, mărfurilor, medicinii și industriilor chimice. Mașina se poate ajusta în funcție de dimensiunile cutiilor. Această mașină adoptă automat o metodă pneumatică pentru ambalare și depășește unele dezavantaje care pot apărea la adoptarea unor alte metode, manuale sau semi-automate, cum ar fi viteza redusă și calitatea instabilă. Această mașină nu va produce daune pe suprafața obiectelor ambalate.

Mașinile automate de sigilat folosesc tehnologii economice și consistente în sigilarea cutiilor, oferindu-vă abilitatea de a gestiona cantitatea de bandă folosită și de timp alocat lipirii unei cutii. Fiecare operator folosește o cantitate diferită de bandă pentru a sigila manual o cutie – lungimi diferite, faze adiționale, benzi duble, etc. – iar durata de timp necesar deschiderii unei cutii, lipirii ei, plasării produsului în interior, umplerii golurilor și sigilării, poate varia de la o cutie la alta. Cu mașinile automate de sigilat cutii, timpul de operare și cantitatea de bandă folosită sunt standardizate. De asemenea, viteza de producție va crește, pentru că mașina automată de sigilat cutii de carton AUTO-TAPE poate sigila până la 19 cutii pe minut. Concepută cu transmisie laterală cu arc, aceast mașină poate procesa și cutii cu profil îngust. Mașina automată de sigilat cutii de carton AUTO-TAPE este concepută pentru a aplica bandă în mod eficient, fără a cauza daune pachetelor.

Specificații ale mașinii automate de sigilat cutii de carton AUTO-TAPE

Avantajele mașinii automate de sigilat cutii de carton AUTO-TAPE

• Această mașină de sigilat cutii de carton poate închide cutii de diferite dimensiuni fără a ajusta înălțimea și lățimea mașinii
• Dimensiuni cutii: Lungime 150mm~∞；Lățime 120mm~470mm；Înălțime 120mm~450mm
• Permite flexibilitatea în producție
• Potriviă pentru produse grele (până la 30 kg)
• Este ușor accesibilă, prin partea laterală
• Înălțimea mașinii de sigilat cutii de carton este ajustabilă
• Pliați manual capacul, iar apoi mașina va închide automat atât partea superioară cât și cea inferioară a cutiei.

Caracteristici ale mașinii automate de sigilat cutii de carton AUTO-TAPE

• Sigilarea cutiilor de caton de diferite mărimi fără ajustare necesară din partea opratorilor; cutiile sunt montat automat
• Presiunea de sigilare este ajustabilă, în funcție de tipurile diferite de carton din care sunt făcute cutiile
• Forța de presiune a brațelor de mișcare de pe laterale poate fi reglată în funcție de greutatea cutiilor
• Brațele de mișcare de pe laterale ajustează automat obiectele ambalate în poziția corectă
• Cadrul de mișcare este condus lent, în mod inteligent și lin, cu ajutorul presiunii aerului
• Cutiile de 30 kg pot fi ușor transportate în mod constant cu ajutorul unei benzi transportoare foarte puternice
• Elementele pneumatice și electrice se combină perfect, făcând operarea foarte simplă și confortabilă
• Structura fină și culoarea armonioasă bucură în egală măsură atât ochiul cât și mintea

Mașina automată de sigilat cutii de carton AUTO-TAPE – utilizări recomandate

Multe industrii pot beneficia de avantajele mașinii automate de sigilat cutii de carton AUTO-TAPE, printre care amintim:

• Industria alimentară și de răcoritoare
• Dispozitivele medicale
• Industria farmaceutică
• Electronicele
• Vânzarea cu amănuntul
• Centrele de producție și distribuție

Video – Mașină automată de sigilat cutii de carton AUTO-TAPE

The post Mașină automată de sigilat cutii de carton AUTO-TAPE 48-72mm (Bandă Kraft sau BOPP) appeared first on ROBOMATIS®.

Mașina de format cutii de carton FLEX BOX va plia cutiile dumneavoastră, va grăbi procesul de formare a cutiilor și va crește viteza întregii linii de producție. Are capacitatea de a crea până la 7 cutii pe minut. Mașina de format cutii de carton FLEX BOX este ajustabilă și poate fi folosită pentru cutii de diferite dimensiuni Lungime(200-600)mm x Lățime(150-480)mm x Înălțime(120-500)mm. Mașina de format cutii de carton FLEX BOX pliază fila inferioară a cutiei. Operatorul pune cutia pe mașină, lucru care conduce la plierea automată a filelor superioare și inferioare ale cutiei, aceasta fiind apoi trimisă în interiorul mașinii unde sunt pliate filele laterale.  Operatorul plasează bunurile înauntru și închide capacul cutiei. Apoi, un dispozitiv de împingere trimite cutia la o mașină de sigilat cutii, pentru a lipi partea inferioară și superioară a cutiei. Această mașină funcționează bine împreună cu FLEX-TAPE carton sealing machine. Înălțimea mesei de lucru este ajustabilă între 700mm și 800mm. Dimensiunile mașinii de format cutii de carton FLEX BOX sunt Lungime1500 × Lățime950 × Înălțime (înălțime masă de lucru +170)mm și cântărește 90kg. Folosește aer comprimat pentru a împinge cutiile pe linia de producție.

Specificații ale mașinii semi-automate de format cutii de carton FLEX BOX:

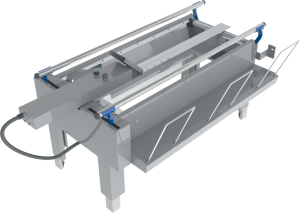

Mașina de format cutii de carton FLEX BOX este o mașină semi-automată în care cutiile goale, nepliate, se pun manual. După instalare, cutia este pliată și este susținută de dedesubt cu ajutorul a două supape pneumatice de pliere. Ulterior, puteți cu ușurință umple cutia fără ca aceasta să se răstoarene. Prin apăsarea unui buton sau prin acționarea unei pedale de picior, cutia este împinsă pneumatic afară din mașină, spre mașina de sigilat cutii cu care este conectată, și care va lipi imediat cutia. Mașina poate fi utilizată în industria fibrelor chimice, tabacului, recoacerii, farmaceutică, editorială, aparatelor de aer condiționat, aparatelor de uz casnic, ceramică, industriilor cu activități la temperaturi ridicate, și așa mai departe.

Video – Mașina semi-automată de format cutii de carton FLEX BOX:

Cum funcționează o mașină semi-automată de format cutii de carton FLEX BOX?

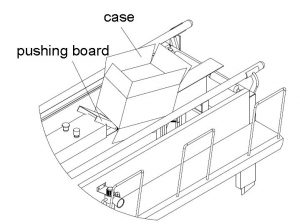

Operatorul deschide o cutie goală și pliază fila din față. Fila din spate este pliată dintr-un unghi de 45° împingând placa.

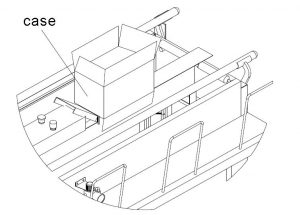

Operatorul așează partea inferioară a cutiei în centrul șinei de ghidare a mașinii de format cutii de carton.

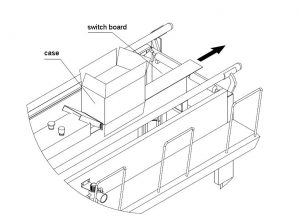

Operatorul mișcă cutia în sensul săgeții în așa fel încât filele din dreapta și stânga jos să atingă placa de manevră.

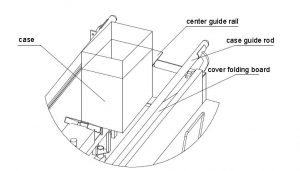

Cilindrul de jos împinge tija de ghidare a cutiei înainte, spre șina de ghidare din centru și spre cleme. În accelași timp, doi cilindri rotesc placa de pliere a filelor din dreapta și stânga, din poziție verticală în poziție orizontală, pentru a plia filele din dreapta și stânga jos. Puneți bunurile în cutie după finalizarea plierii (vezi diagrama 3-8).

După cum se observă în diagramă, operatorul pliază filele din partea superioară a cutiei și le închide, apoi apasă comutatorul dispozitivului (sau pedala de picior). Cilindrul împinge dispozitivul care împinge cutia cu bunuri spre mașina de sigilat cutii, pentru a lipi cutia (vezi diagrama 3-9).

The post Mașină semi-automată de format cutii de carton FLEX BOX appeared first on ROBOMATIS®.

Mașinile automate pentru sigilat cutii cu bandă adezivă voir grăbi foarte tare procesul de ambalare a cutiilor de carton și a altor pachete. Mașina sigilare cutii automatizează procesul lipirii benzii pe partea superioară și inferioară a cutiei. Productivitatea ambalării crește, iar numărul de pachete ambalate per minut de obicei se multiplică de câteva ori. O mașină sigilare cutii cu bandă adezivă este ușor de folosit și poate fi operată de o persoană care nu necesită o pregătire profesională prealabilă. Mașina este potrivită pentru benzi adezive cu lățimi între 48 mm și 72 mm și pentru cutii sau pachete cu o lungime între 280 mm și 550 mm, cu o lățime între 120 mm și 480 mm și o înălțime între 120 mm și 480 mm. Mașina sigilare cutii este dezvoltată pentru sigilarea cutiilor pe ambele părți (superioară și inferioară). Este prevăzută cu o masă a cărei înălțime este ajustabilă între 550 și 750 mm.

Caracterisitici ale mașinii automate sigilare cutii TOP TAPE

• Pliază automat filele superioare ale cutiilor
• Transportă automat cutiile și sigilează în același timp partea superioară și inferioară a cutiilor
• Potrivită pentru a se integra într-o linie de producție complet automatizată
• Transmisie laterală
• Lățimea și înălțimea cutiilor trebuie ajustate manual

Specificații ale mașinii sigilare cutii TOP TAPE

· benzi laterale incluse
· Potrivită pentru produse grele

Dimensiunile mesei mașinii sigilare cutii

Funcționarea mașinii sigilare cutii TOP TAPE

Filele cutiilor sunt pliate automat, iar apoi mașina sigilează părțile superioare și inferioare ale cutiilor. Cutia trebuie poziționată în mijlocul mașinii, iar apoi partea superioară și cea inferioară sunt sigilate. Se pot folosi benzi adezive de o lățime între 48 mm și 72 mm, dar capul de lipire poate fi personalizat în funcție de nevoia clientului. Pentru ca mașina să poată funcționa corespunzător, vă rugăm în primul rând să luați în calcul lungimea, lățimea, înălțimea și greutatea cutiei. Dimensiunile cutiilor specificate pentru folosirea mașinii sunt după cum urmează și pot fi personalizate în funcție de nevoile clientului: Lungime (280～550)mm × Lățime (120～480)mm × Înălțime (120～480)mm.

Cum funcționează mașina sigilare cutii

1. Conectați la sursa de curent; se va aprinde lumina de alimentare. Conectați la sursa de aer.
2. Apăsați butonul START, mașina va porni, iar benzile vor începe să se miște.
3. Fără a plia filele de carton, împingeți cutia în zona benzilor, iar acestea o vor mișca spre înainte.
4. În timpul procesului de mutare a cutiei înainte, mașina va plia automat filele cutiei, capul de lipire va lipi cutia, cutia finisată va fi evacuată cu ajutorul benzilor.
5. Suprafețele superioare și inferioare ale cutiilor care urmează a fi sigilate sunt presate de rolele de sus și de jos, astfel încât cutia este sigilată automat.
6. Lama taie automat banda adezivă, după ce toate cerințele sigilării au fost îndeplinite.

Video – Mașina automată sigilare cutii

The post Mașină automată sigilare cutii TOP TAPE 48-72 mm (Bandă Kraft sau BOPP) appeared first on ROBOMATIS®.

Mașinile de închidere a cutiilor de carton cu bandă adezivă vor grăbi extrem de mult procesul de ambalare a cutiilor de carton și a altor pachete. Masini de sigilat cutii de carton, semi-automate, automatizează procesul de lipire a benzii pe partea superioară și inferioară a cutiei. Productivitatea ambalarii crește, numărul de cutii ambalate pe minut crește de obicei de mai multe ori. Astfel de masini de sigilat cutii cu bandă adezivă sunt ușor de utilizat și pot fi operate de o persoană fără pregătire profesională prealabilă. Potrivit pentru benzi adezive cu lățimea de la 48 mm la 72 mm și pentru cutii sau pachete cu lungimea de cel puțin 150 mm, lățimea între 120 și 480 mm și înălțimea între 120 și 480mm. Mașina este concepută doar pentru etanșarea cartoanelor și numai în scopul sigilării cartoanelor.

Specificatii masini de sigilat cutii semi-automate FLEX TAPE:

· curele laterale de acționare
· Potrivit pentru produse cu greutate

Functia masinii de sigilat cutii semi-automate FLEX TAPE 48-72mm (cu banda Kraft sau BOPP)

Clapele de carton sunt pliate manual, apoi aparatul sigilează părțile superioare și inferioare ale cutiei. Cartonul trebuie să fie în mijlocul mașinii, iar părțile superioare și inferioare ale cutiei sunt sigilate. Benzile adezive late 48mm-72mm pot fi utilizate în capul de filetare, care pot fi personalizate în funcție de nevoile clienților. Pentru ca aparatul să funcționeze corect, vă rugăm să luați în considerare mai întâi lungimea, lățimea, înălțimea și greutatea unui carton. Specificațiile de carton pentru mașină sunt următoarele, care pot fi personalizate în funcție de nevoile clienților: Lungime: (150 până la + ∞) mm; Lățime: (120-480) mm; Înălțime: (120-480) mm

The post Masini de sigilat cutii FLEX TAPE 48-72mm (banda Kraft sau BOPP) appeared first on ROBOMATIS®.
